Plugs and Sockets DC

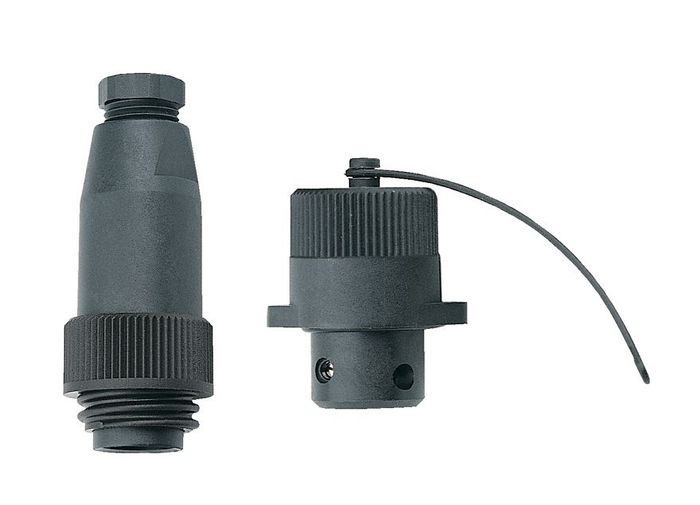

  • HELLA Waterproof Plugs and Sockets
    Watertight plastic plugs and sockets for exterior or interior installations rated IP67. Socket includes plastic cap. Impact resistant plastic housing. Silver contacts. 2 to 4 pin with screw terminals rated 16A at 12V. 7 pin with solder terminals rated 10A at 12V. Plug suitable for cable up to 8mm outside diameter. Optional surface mounting base available.
    Part No. Description Price Quantity
    289070
    Plug & socket flushmount with cap IP67 2 pin screw terminal 16A NO LONGER AVAILABLE HELLA 8JA 006 801-802 2782
    		$54.00 Inc GST
    289071
    Plug & socket flushmount with cap IP67 3 pin screw terminal 16A HELLA 8JA 006 803-801 2783
    		$61.00 Inc GST
  • DIN Panel Mount DC Socket
    DIN DC socket, flush mount with rubber cap. DIN 4165 connectors provide for a better electrical connection than cigarette lighter connectors. Rated 12V 8A. Cut d18mm, intrusion 50mm behind panel face, screw terminals.
    Part No. Description Price Quantity
    289210
    Socket Euro 12V 16A panelmount with cap 4916
    		$16.00 Inc GST
  • DIN DC Plug
    DIN4165 DC plug, rated 12V 8A. Crush terminals, max cable size 5mm.
    Part No. Description Price Quantity
    289211
    Plug Euro 15A 12V 4914
    		$9.00 Inc GST
  • DIN Surface Mount DC Socket
    DIN DC socket, surface mount. Rated 12V 8A. Dimensions 57mmW x 37mmH,protrusion 25mm, screw terminals.
    Part No. Description Price Quantity
    289212
    Socket Euro 12V 16A surface mount 4917
    		$15.00 Inc GST

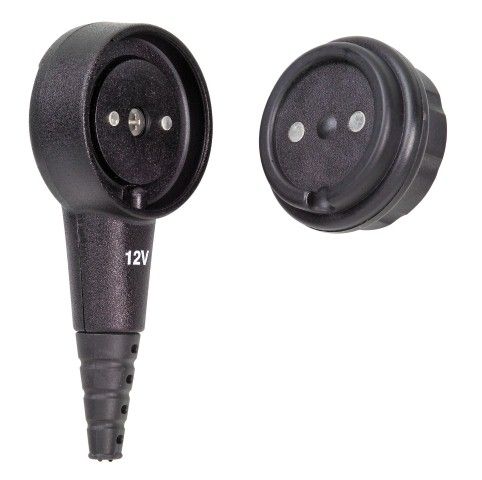

  • MAGCODE dc Outlets and Clips
    MAGCODE IP 59 dc connectors consist of a port and clip, the connection is secured magnetically.Contacts switched off magnetically unless a clip is fitted. Opposite magnetic polarity in 12V and 24V elements. Rated 25A

    Downloads

    Part No. Description Price Quantity
    289260
    Plug Magcode kit 12V 25A+ HMPS12VKIT
    		$66.00 Inc GST
    289261
    Plug Magcode clip 12V 25A+ HMPS12VCP
    		$36.00 Inc GST
    289262
    Socket Magcode port 12V 25A+ HMPS12VPT
    		$37.00 Inc GST
    289265
    Plug Magcode kit 24V 25A+ HMPS24VKIT
    		$62.00 Inc GST
    289266
    Plug Magcode clip 24V 25A+ HMPS24VCP
    		$33.00 Inc GST
    289267
    Socket Magcode port 24V 25A+ HMPS24VPT
    		$34.00 Inc GST
  • Plug MagcodePro kit 12V 25A+
    Part No. Description Price Quantity
    289270
    Plug MagcodePro kit 12V 25A+ HMPSPRO12VKIT
    		$106.00 Inc GST
    289271
    Plug MagcodePro clip 12V 25A+ HMPSPRO12VCP
    		$49.00 Inc GST
    289272
    Socket MagcodePro port 12V 25A+ HMPSPRO12VPT
    		$61.00 Inc GST
  • HELLA Flat 7 Pin Trailer Plug
    Hella flat 7 pin trailer plug to AS4177.5. Impact resistant, UV stabilised plastic.
    Part No. Description Price Quantity
    289300
    Plug Trailer flat AS4177.5 7 pin 4921
    		$15.00 Inc GST

    Related Products

  • HELLA Flat 7 Pin Trailer Socket
    Hella socket for flat 7 pin trailer plug to AS4177.5. Impact resistant, UV stabilised plastic. Nickel plated contacts for excellent electrical performance, spring loaded lid. Max total load 20A@12V or 10A@24V.
    Part No. Description Price Quantity
    289305
    Socket trailer flat AS4177.5 7 pin 4920
    		$15.00 Inc GST
  • HELLA Round 7 Pin Trailer Plug
    Hella round 7 pin trailer plug to DIN ISO & AS4735. Impact resistant, UV stabilised plastic. Nickel plated contacts for excellent electrical performance. Max total load 20A@12V or 10A@24V.
    Part No. Description Price Quantity
    289310
    Plug Trailer round DIN ISO AS4735 7 pin 4902
    		$18.00 Inc GST

    Related Products

  • HELLA Round 7 Pin Trailer Socket
    Hella socket for round 7 pin trailer plug to DIN ISO & AS4735. Impact resistant, UV stabilised plastic. Nickel plated contacts for excellent electrical performance. Max total load 20A@12V or 10A@24V.
    Part No. Description Price Quantity
    289315
    Socket Trailer round DIN ISO AS4735 7pn 4912
    		$13.00 Inc GST
