Ammeters
1 to 2 of 2 results
-

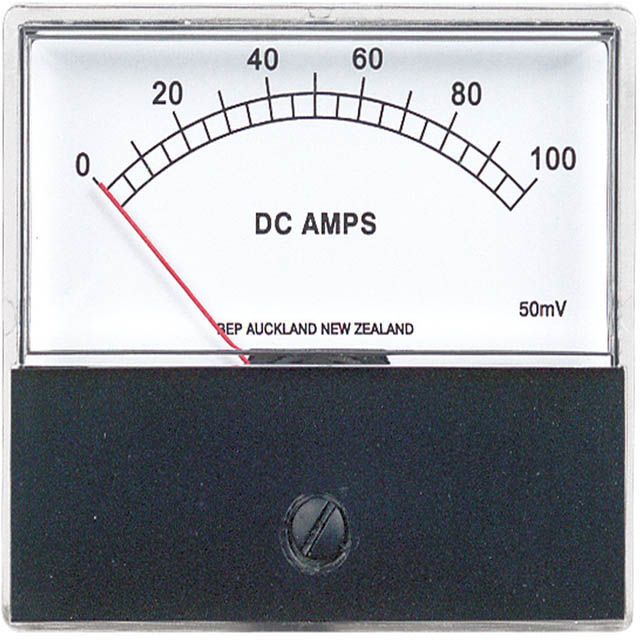

BEP AmmetersDC ammeters. These can also be used as replacement ammeters in BEP circuit breaker panels.71mm x 60mm, panel mount through d52mm hole.Alternatively can be mounted behind a panel, cutout 67mm x 32mm. Internal shunt for low current instruments, external shunts [to be ordered seperately] required for 50A to 150A instruments.
Part No. Description Price Quantity 325442Ammeter BEP 0-10A DC N010A -551155BEPN10A$120.00 Inc GST 325443Ammeter BEP 0-20A DC N020A -$120.00 Inc GST 325447Ammeter BEP 0-50A DC shunt reqd N050A 113436$87.00 Inc GST 325448Ammeter BEP 0-100A DC shunt reqd N0100A 113438$98.00 Inc GST 325449Ammeter BEP 0-150A DC shunt reqd N0150A 113456$97.00 Inc GST -
Ammeter Shunts 50mVAn ammeter shunt is a very low-resistance connection between two points in an electric circuit that forms an alternative path for a portion of the current. Shunt voltage drop is used in conjunction with an ammeter to measure amperage of a circuit. The shunts listed below are all 50mV shunts, calibrated to the specified current.
Part No. Description Price Quantity 325911Shunt 010 A DC 50mV 87192VUMTEC$100.00 Inc GST 325913Shunt 020 A DC 50mV 87192VUNGEC$100.00 Inc GST 325915Shunt 030 A DC 50mV 29430 87192VUNLEC$100.00 Inc GST 325916Shunt 040 A DC 50mV 29440 87192VUNPEC$100.00 Inc GST 325917Shunt 050 A DC 50mV 87192VUNTEC$100.00 Inc GST 325918Shunt 060 A DC 50mV 29455 87192VUNWEC$100.00 Inc GST 325920Shunt 080 A DC 50mV 29470 87192VUPDEC$100.00 Inc GST 325922Shunt 100 A DC 50mV BEP 100A-50MV 113454$97.00 Inc GST 325925Shunt 150 A DC 50mV BEP 150A-50MV 113456$97.00 Inc GST 325927Shunt 200 A DC 50mV 29490 87292VURLEC$120.00 Inc GST 325929Shunt 300 A DC 50mV H7292VURXEC$120.00 Inc GST 325940Shunt 500 A DC 50mV 872-92VU-SFEC$150.00 Inc GST
1 to 2 of 2 results
