Relays, Solenoids & Contactors

  • Part No. Description Price Quantity
    235025
    Relay Hella 24V 22A diode protected 3054 3054
    		$8.00 Inc GST
  • Hella 5 Pin Normally Open Low Current Relays
    HELLA five pin relays with 2 normally open, switched terminals. 6mm blade terminals. Diode protection prevents the induced shut off voltage becoming high enough to cause damage to transistors and ICs.
    Part No. Description Price Quantity
    235026
    Relay Hella diode protected 5 pin with two NO switched contacts 12V 40A 3055 3055
    		$8.00 Inc GST
    235027
    Relay Hella diode protected 5 pin with two NO switched contacts 24V 22A 3056 3056
    		$8.00 Inc GST
  • Hella Normally Open Low Current Relays with Fuse
    HELLA relays with built in fuse. Four terminal, plastic with standard 6mm automotive spade terminals and a 15A blade fuse.
    Part No. Description Price Quantity
    235030
    Relay 12V25A with fuse 3076 3076
    		$26.00 Inc GST
    235032
    Relay 24/15A with fuse 3077 3077
    		$27.00 Inc GST
  • Hella Low Current Change-over Relays
    HELLA change-over relays, plastic with five 6mm spade terminals. Change-over relays have both normally open and normally closed contacts.
    Part No. Description Price Quantity
    235040
    Relay 12V 20/30A changeover HELLLA 3080 3080
    		$19.00 Inc GST
    235042
    Relay 24V 20A changeover HELLA 3081 3081
    		$18.00 Inc GST
  • Hella Low Current Change-over Relays
    HELLA change-over relays, plastic with five 6mm spade terminals. Change-over relays have both normally open and normally closed contacts. Diode protected from voltage spikes during switching.
    Part No. Description Price Quantity
    235050
    Relay change over 12V40/15A continuous diode protected HELLA 3057 3057
    		$9.00 Inc GST
    235052
    Relay change over 24V22/15A continuous diode protected HELLA 3058 3058
    		$8.00 Inc GST
  • Hella Normally Open Medium Current Relays
    HELLA medium current relays, four terminals, with 9mm spade terminals on switched circuit, 6mm terminals on controlling circuit.
    Part No. Description Price Quantity
    235060
    Relay Hella 12V 60A, 9,5mm switched terminals, 6mm coil terminals 3084 3084
    		$62.00 Inc GST
    235062
    Relay Hella 24V 50A 3085 3085
    		$64.00 Inc GST
  • Hella Normally Open High Current Relays
    HELLA high current relays, four terminals, 6mm screw terminals on switched circuit, 6mm spade terminals on controlling circuit.
    Part No. Description Price Quantity
    235070
    Relay Hella 12V 180A/100A continuous 3061 3061
    		$39.00 Inc GST
    235072
    Relay Hella 24V 80A/60A continuous 3062 3062
    		$39.00 Inc GST
  • Surface Mounting Socket for Hella Relays
    Surface mounting socket for Hella four and five pin
    Part No. Description Price Quantity
    235090
    Relay socket 4973 4973
    		$8.00 Inc GST

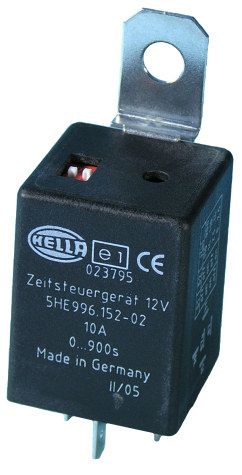

  • Relays with variable dropout or pick-up delays
    Timer relay delays the breaking or making of a circuit. Adjustable delay of between 0 and 900s. Suited to applications such as electric toilets. Max switched current 20A. Connections 6mm spade
    Part No. Description Price Quantity
    235200
    Relay dropout delay timer 0-900s 12V10A+ 3086-12V 3086-12V
    		$95.00 Inc GST
    235202
    Relay dropout delay timer 0-900s 24V10A 3086-24V 3086-24V
    		$104.00 Inc GST
    235205
    Relay pick-up delay timer 0-900s 12V10A 3087-12V 3087-12V
    		$95.00 Inc GST
    235207
    Relay pick-up delay timer 0-900s 24V10A 3087-24V 3087-24V
    		$104.00 Inc GST
  • Cutout d64, protru 12, intru 21, body 60x60, screw holes d3 on 54x54, 6mm spades
    Part No. Description Price Quantity
    235221
    Timer digital NO & NC 8 switch times24V TIME24
    		$86.00 Inc GST

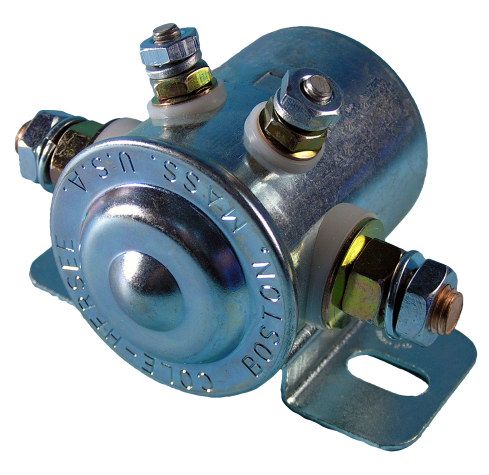

  • Can Solenoids
    Solenoids, also known as contactors, perform same function as a relay. Ratings are continuous. Silver contacts have greater durability. Oil filling inhibits arcing, units must be mounted with the terminals down to immerse contacts.

    Downloads

    Part No. Description Price Quantity
    236000
    Solenoid 6V 080A continuous copper ACX3300
    		$99.00 Inc GST
    236001
    Solenoid 12V 080A continuous copper ACX3302
    		$69.00 Inc GST
    236002
    Solenoid 12V 090A continuous silver 59052 ACX3304
    		$90.00 Inc GST
    236003
    Solenoid 12V 200A continuous silver + 24213 24213B
    		$168.00 Inc GST
    236011
    Solenoid 24V 070A continuous copper 24063 24063-BX
    		$65.00 Inc GST
    236013
    Solenoid 24V 200A continuous silver+ 24414B
    		$168.00 Inc GST
    236018
    Solenoid 12V 080A changeover 59083 ACX3315
    		$125.00 Inc GST
    236019
    Solenoid 24V 080A changeover 59086 ACX3316
    		$135.00 Inc GST
  • Plasticised Can Solenoids
    Plasticised versions of the solenoids above to prevent rusting when mounted in corrosive environments. Made by Cole Hersee.
    Part No. Description Price Quantity
    236021
    Solenoid 12V85A continuous Cu plasticisd 24117 ACX3310 CH: 24117 POR: 201337
    		$88.00 Inc GST
  • Part No. Description Price Quantity
    236023
    Solenoid 12V200A continuous Cu plasticsd ACX3312 CH: POR:
    		$0.00 Inc GST
    236026
    Solenoid 24V85A continuous Cu plasticisd 24063-06 24063-06BX
    		$100.00 Inc GST

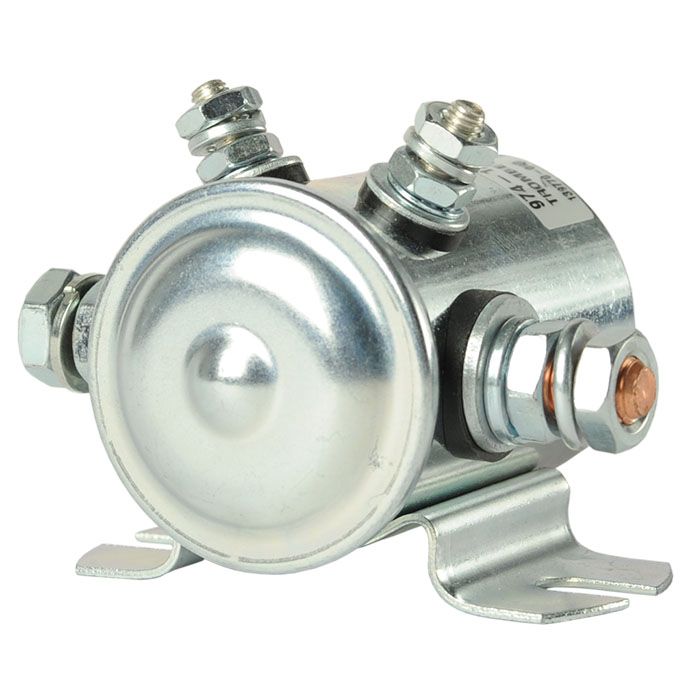

  • TROMBETTA Metal Solenoids 125A
    Traditional metal housing contactor or can solenoid, redesigned by Trombetta to provide a high performance, electrically efficient and extremely robust device for demanding applications. The Metal DC contactor range features high current carrying , rated 125 A nominal, 600/500 A peak inrush at 12/24V. Additional surface corrosion protection coating is recommended for marine applications. The solenoid should be mounted onto a vertical surface with the contacts at the bottom, as this will ensure that the oil filled into the housing submerses the contacts, which reduces arcing during switching and prolongs product life.

    Downloads

    Part No. Description Price Quantity
    236030
    Contactor, 12VDC 125 A copper contacts (Continuous) Side Bracket 974-1215-010
    		$66.00 Inc GST
    236032
    Contactor, 24VDC 125 A copper contacts (Continuous) Side Bracket 974-2215-010
    		$70.40 Inc GST
  • Part No. Description Price Quantity
    236040
    Contactor 2VDC 100A SIlver contacts (Continuous) Base Bracket 6.3mm push on terminals 764-1221-020
    		$45.00 Inc GST
    236042
    Contactor 12VDC 100A SIlver contacts (Continuous) Base Bracket 764-1221-020
    		$45.00 Inc GST
    236044
    Contactor 12VDC 200A Copper contacts (Intermittent) Base Bracket 764-1221-020
    		$25.00 Inc GST
    236046
    Contactor 24VDC 100A Silver contacts (Continuoust) Base Bracket 764-1221-020
    		$46.00 Inc GST

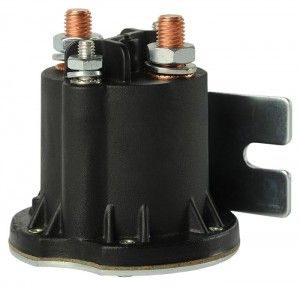

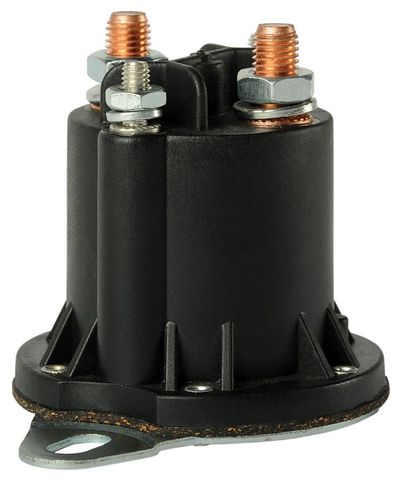

  • TROMBETTA PowerSeal Sealed Contactors
    The Trombetta PowerSeal range features an environmentally sealed housing to IEC 60529, IP66 and IP67 standard. It is the first contactor designed specifically for electric vehicles and other applications where environmental protection is a must. The sealed design is the core of the construction and is optimized for high performance at lower cost. Constructed from high impact plastic with zinc plated steel frame, the PowerSeal range is designed for high performance, durability and longevity. Rated 150 A nominal, 800 A peak inrush current at 12/24V. Additional surface corrosion protection coating of the metal base is recommended for marine applications.

    Downloads

    Part No. Description Price Quantity
    236050
    Contactor 12VDC 150A Copper (continuous) base bracket 684-1221-012
    		$51.00 Inc GST
    236051
    Contactor 12VDC 150A Copper (intermittent) base bracket 684-1221-212
    		$50.00 Inc GST
    236052
    Contactor 12VDC 150A Copper (continuous) side bracket 684-1251-012
    		$54.00 Inc GST
    236053
    Contactor 12VDC 150A Copper (intermittent) side bracket 684-1251-212
    		$50.00 Inc GST
    236054
    Contactor 24VDC 150A Silver(icontinuous) base bracket 684-2421-012
    		$53.00 Inc GST
    236055
    Contactor 24VDC 150A Copper (intermittent) base bracket 684-2421-212
    		$52.00 Inc GST
    236056
    Contactor 24VDC 150A Copper (continuous) side bracket 684-2451-212
    		$54.00 Inc GST
    236057
    Contactor 24VDC 150A Copper (intermittent) side bracket 684-2451-212
    		$53.00 Inc GST

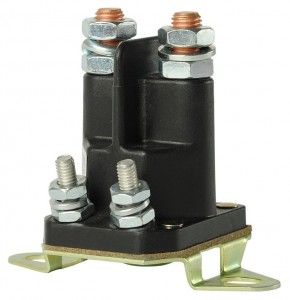

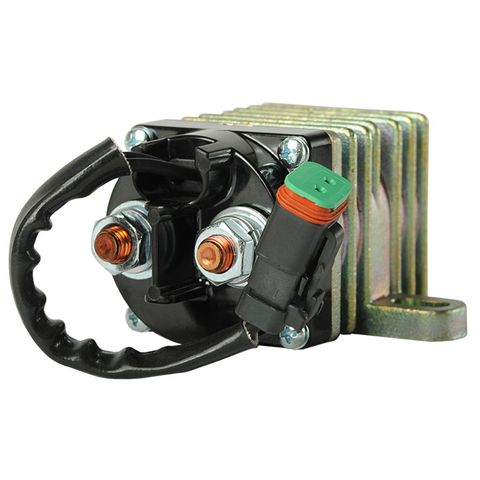

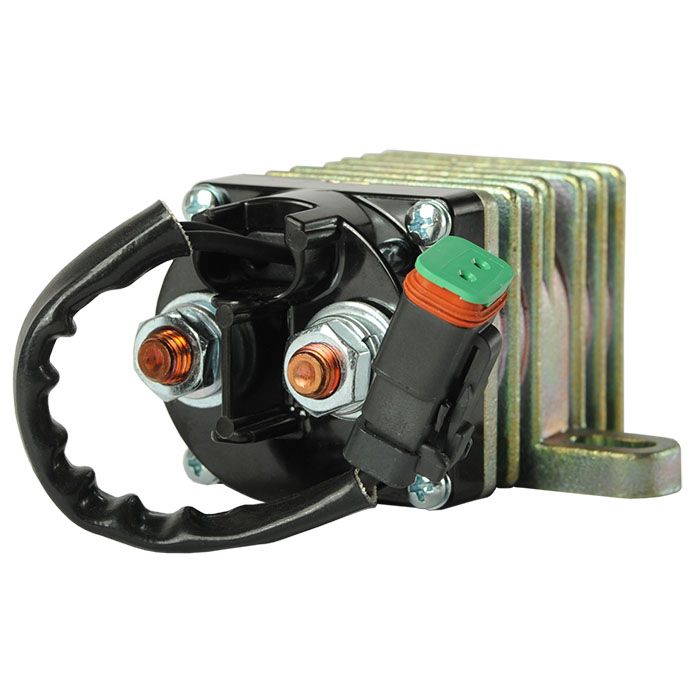

  • TROMBETTA Defender Contactors
    Engineered to withstand high temperatures, excessive dust, liquid and vibration the Defender contactor is an ideal choice for arduous environmental conditions. It is designed to carry currents as low as 350 milliamps and as high as 100 amps. Rated 200 A resistive @ 12V, 100 A resistive @ 24V, 100 A inductive, 400 A peak inrush current. With coil Transient Volt Suppression, the Defender protects sensitive components in your system. Perfect for marine, off road, mission critical, earth moving, mining and agricultural applications, the Defender is the ultimate performer.

    Downloads

    Part No. Description Price Quantity
    236060
    Contactor, 12VDC 200A silver contacts (Continuous) 404-1231-032
    		$229.00 Inc GST
    236062
    Contactor, 24VDC 200A silver contacts (Continuous) 404-2431-032
    		$231.00 Inc GST

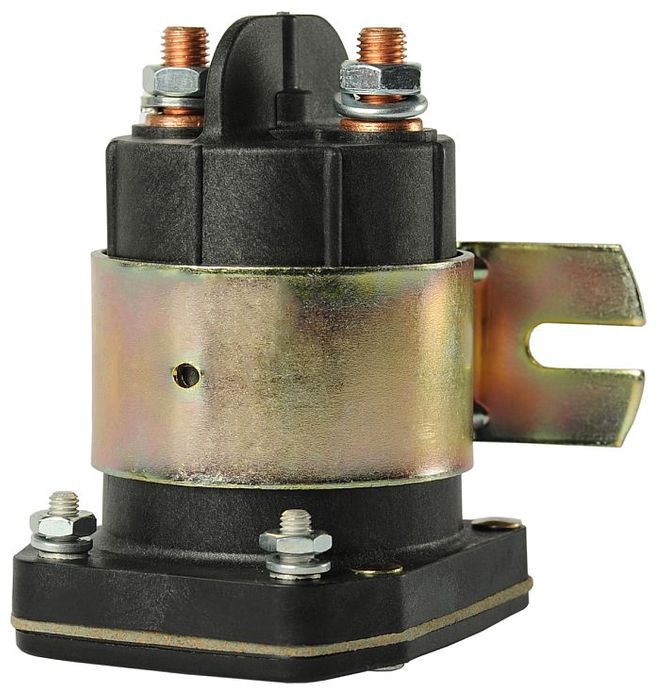

  • TROMBETTA Bear Contactors
    Designed for high current applications, the Trombetta Bear range of solenoid contactors represent excellent value. The combination of high impact plastic and zinc steel housing provides a robust device, compact in size and easy to install. Available with either 12 or 24VDC coils and copper or long life silver alloy the Bear is ideal for battery management, emergency starting, load switching and a myriad of demanding transport applications. Rated 225 A nominal, 600 A peak inrush current at 12/24V.

    Downloads

    Part No. Description Price Quantity
    236070
    Contactor, 12VDC 225A copper contacts (Continuous) 114-1211-010
    		$148.00 Inc GST
    236072
    Contactor, 12VDC 225A silver contacts (Continuous) 114-1211-020
    		$209.00 Inc GST
    236074
    Contactor, 24VDC 225A copper contacts (Continuous) 114-2411-010
    		$150.00 Inc GST
    236076
    Contactor, 24VDC 225A silver contacts (Continuous) 114-2411-020
    		$215.00 Inc GST
  • BLUE SEA SYSTEMS L-Series Solenoid
    The Blue Sea solenoid is rated for a continuous 450A and 2000A cranking. M8 studs, holding current 0.13A@12V, 0.07A@24V
    Part No. Description Price Quantity
    236080
    Solenoid BS 12/24V 450Acont 2000A(2,5s)+ 9012
    		$405.00 Inc GST

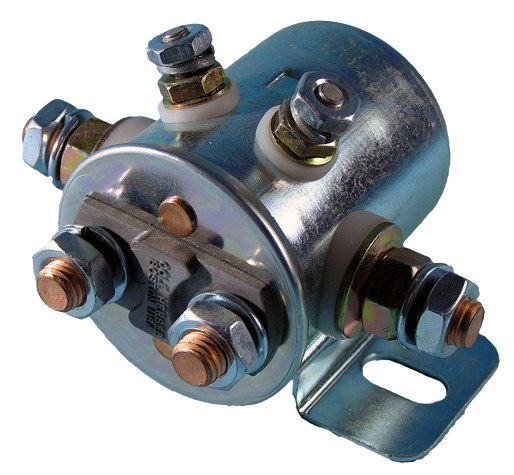

  • Motor Reversing Solenoid
    Motor reversing solenoids, suitable for winch motors. 236300 and 236301 are for series wound motors, ie three wires, 236010 is for permanent magnet motors, ie two or four wires.
    Part No. Description Price Quantity
    236300
    Solenoid revers 12V150A series wound 3P+ P801045
    		$215.00 Inc GST
    236301
    Solenoid revers 24V83A series wound mot+ R80-RS24V3P
    		$215.00 Inc GST
    236310
    Solenoid revers 12V125A perm magnt mot+ P801043
    		$215.00 Inc GST
    236311
    Solenoid revers 24V2000W perm magnt mot+
    		$215.00 Inc GST
  • TROMBETTA Reversing Polarity DC Contactors
    Trombetta’s Reversing Polarity DC contactors provide a cost effective and simple solution for reversing direction of permanent magnet DC motors. By integrating two DC Contactors into a single unit, Trombetta has provided an efficient means for manufacturers and installers to reduce assembly costs. The RP is perfect for any application that requires reversing motion, such as winching, lifting, sliding and levelling systems in a multitude of transport applications. Rated 75 A for 5 minutes,150 A peak inrush current [copper], 500 A peak inrush current [silver] at 12/24V.

    Downloads

    Part No. Description Price Quantity
    236320
    Solenoid TRO pol reversing Copper 12V 75A 214-1231-A11 2141231A11
    		$168.00 Inc GST
    236322
    Solenoid TRO pol reversing Silver 12V 75A 214-1231-A61-06
    		$200.00 Inc GST
    236324
    Solenoid TRO pol reversing silver 24V 75A 214-1231-A11
    		$201.00 Inc GST
