Distribution Panels AC

  • Part No. Description Price Quantity
    200100

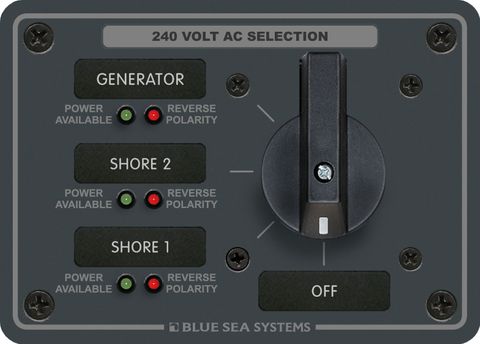

    Panel AC Rotary 3 Pole Switch 65 Ampere 3 positions + OFF 8361-BSS -
    $1,272.00 Inc GST

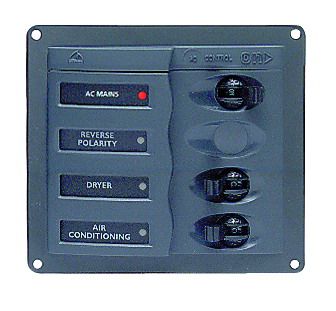

  • BEP 900-ACM2W AC Panel
    BEP AC control panels. All 230V AC panels are available in 110V options. Digital meter where used is the unit detailed under part number 205081. All digital and analog metered panels are supplied with current transformers. BEP 900-ACM2W has a double pole mains [20A] and 2 single pole circuit breakers [2x10A] and a reverse polarity light, no meter. Supplied with label set 5 and 2xM6 distribution studs.
    Part No. Description Price Quantity
    200000
    Distr panel AC 1DP 2SP no meter + 900-ACM2W 113219
    $677.00 Inc GST

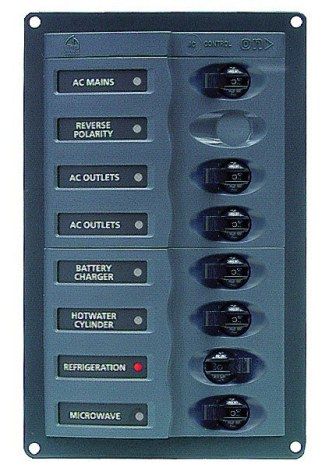

  • BEP 900-ACM6W AC Panel
    BEP 900-ACM6W has a double pole mains [20A] and 6 single pole circuit breakers [2x10A, 3x15A], 1-20A] and a reverse polarity light, no meter. 127mmW x 200mmH. Supplied with label set 5 and 2xM6 distribution studs.
    Part No. Description Price Quantity
    200001
    Distr panel AC 1DP 6SP no meter + 900-ACM6W 113221
    $977.00 Inc GST

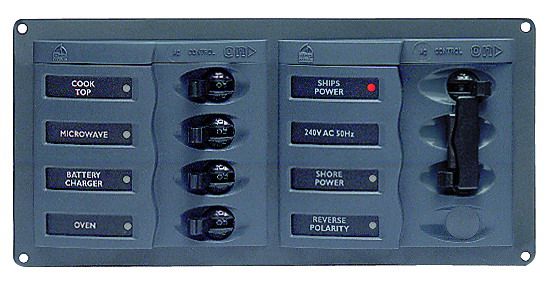

  • BEP 900-AC1 AC Panel
    BEP 900-AC1 has 2 double pole mains circuit breakers [2x20A] with slide lockout[ship-shore], 4 single pole circuit breakers [2x10A, 2x15A] and a reverse polarity light, no meter. Supplied with label set 5 and 2xM6 distribution studs.
    Part No. Description Price Quantity
    200002
    Distr panel AC 2DP 4SP no meter + 900-AC1 113220
    $911.00 Inc GST
  • BEP MS4 Digital AC Monitor Panel, no Circuit Breakers
    The Contour Digital AC Monitor offers comprehensive monitoring for your AC system from standard single line inputs to twin line systems as used in the USA [no need for additional selector switch for AC inputs]. The Meter is supplied with an AC transducer, Part No; AC-VSEN and current transformer Part No; CT-10-3. A larger CT, Part No; CT-HD, is also available where cables are too large to pass through the standard CT. Selectable legends allow full information to be shown on the screen to avoid confusion, unlike other digital meters available, which only show confusing digits. LCD screen draws 70 percent less than equivalent LED screens.
    Part No. Description Price Quantity
    200020
    Distr panel BEP ACSM V/A/f Monitoronly+ 80-600-0028-00 113424
    $1,174.00 Inc GST
  • BEP 900-AC2-AM and DH AC Panels
    BEP 900-AC2AM and BEP 900-AC2DM have 2 double pole mains circuit breakers [1x20A, 1x30A] with slide lockout [ship-shore], 8 single pole circuit breakers [1x5A, 3x10A, 3x15A, 1x20A], a reverse polarity light and an analog voltmeter or a digital meter in a horizontal [almost square] configuration. Supplied with label set 5 and two 6 way distribution busses.
    Part No. Description Price Quantity
    200022
    Distr panel AC 2DP 8SP an meter + 900-AC2H-AM 113224
    $1,571.00 Inc GST
    200024
    Distr panel AC 2DP 8SP di meter + 900-AC2H-ACSM 113222
    $2,472.00 Inc GST
  • BEP 900-AC2AV and DV AC Panels
    BEP 900-AC2AV and BEP 900-AC2DV have 2 double pole mains circuit breakers [1x20A, 1x30A] with slide lockout [ship-shore], 8 single pole circuit breakers [1x5A, 3x10A, 3x15A, 1x20A], a reverse polarity light and an analog voltmeter or a digital meter in a vertical configuration. Supplied with label set 5 and two 6 way distribution busses.
    Part No. Description Price Quantity
    200026
    Distr panel AC 2DP 8SP an meter + 900-AC2V-AM -
    $1,707.00 Inc GST
    200028
    Distr panel AC 2DP 8SP di meter + 900-AC2V-ACSM 113226
    $2,495.00 Inc GST
  • BEP 900-AC3A and 900-AC3-ACSM AC Panels
    BEP 900-AC3A and BEP 900-AC3-ACSM have 2 double pole mains circuit breakers [1x20A, 1x30A] with slide lockout [ship-shore], 12 single pole circuit breakers [1x5A, 4x10A, 5x15A, 1x20A, 1x25A], a reverse polarity light and an analog voltmeter or a digital meter in a horizontal configuration. Supplied with label set 5 and two 12 way distribution busses.
    Part No. Description Price Quantity
    200030
    Distr panel AC 2DP 12SP an meter+ 900-AC3-AM -
    $2,544.00 Inc GST
    200032
    Distr panel AC 2DP 12SP di meter+ 900-AC3-ACSM 113230
    $3,007.00 Inc GST

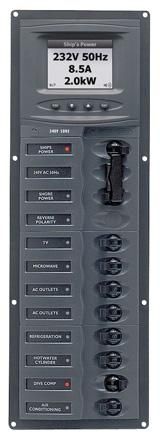

  • BEP 900-AC4-ACSM AC Panel
    BEP 900-AC4-ACSM has 2 double pole mains circuit breakers [1x20A, 1x50A] with slide lockout [ship-shore], 16 single pole circuit breakers [1x5A, 5x10A, 7x15A, 2x20A, 1x25A], a reverse polarity light and a digital meter in a horizontal configuration. Supplied with label set 5 and two 12 way distribution busses.
    Part No. Description Price Quantity
    200034
    Distr panel AC 2DP 16SP di meter+ 900-AC4-ACSM 113234
    $3,239.00 Inc GST

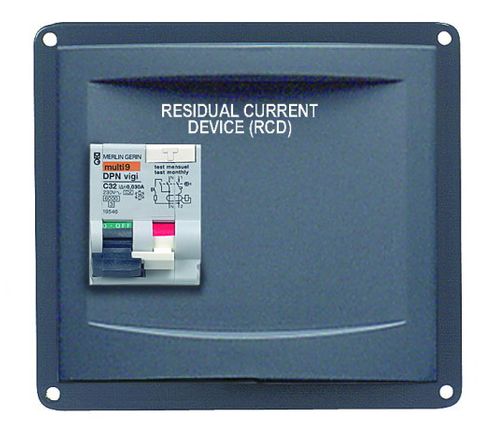

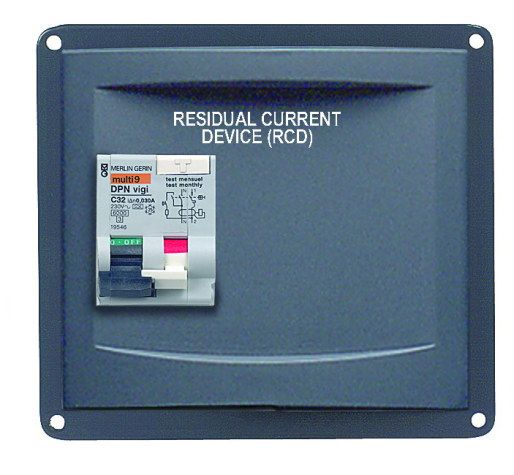

  • BEP 900RCD-16 and 900RCD-32 AC Panels with Residual Current Devices
    BEP 900-RCD AND 900-RCD2 are suited for use together with the other panels in the BEP range to meet the requirement for RCD protection in AC installations. Available rated 16A and 32A.
    Part No. Description Price Quantity
    200050
    Panel RCD 1 x 16A+ 900-RCD-16A 113642
    $524.00 Inc GST
    200051
    Panel RCD 2x16A+ 900-RCD-2X16A 113644
    $919.00 Inc GST
    200055
    Panel RCD 1 x 32A+ 900-RCD-32A -
    $566.00 Inc GST
    200056
    Panel RCD 2 x 32A 900-RCD-2X32A -
    $1,003.00 Inc GST
    200057
    Panel RCD 1 X 16A, 1 x 32A+ 900-RCD-1X16-32A 113645
    $919.00 Inc GST
  • Part No. Description Price Quantity
    200060
    Enclosure for BEP ac RCD & MCB+ MCB-3WENC 113599
    $184.00 Inc GST

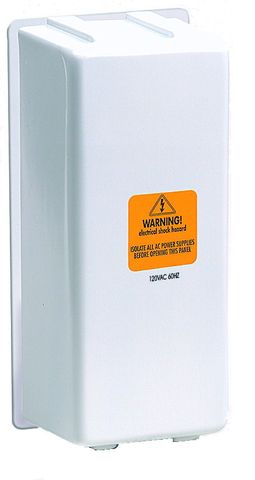

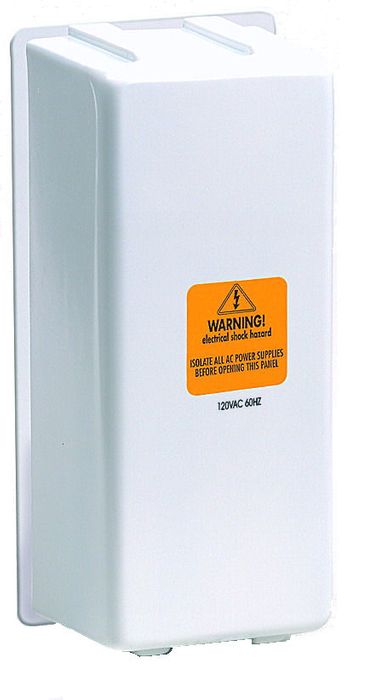

  • Rear Covers for BEP AC Panels
    Designed to insulate the exposed terminals at the rear of BEP 'Contour AC' circuit breaker panels. Made from flame retardant PVC. Flange mounted to the rear of the same substrate as the panel. Covers are supplied complete with hazard label. Available in two heights to suit panels with between 8 and 12 circuit breakers per column, with or without a meter.
    Part No. Description Price Quantity
    200070
    Cover rear BEP AC panel flanged 127x285 BC-FM3 113237
    $132.00 Inc GST
    200072
    Cover rear BEP AC panel flanged 127x380 BC-FM1 113235
    $101.00 Inc GST
    200075
    Cover rear BEP AC panel flanged 239x285 BC-FM4 113238
    $172.00 Inc GST
    200077
    Cover rear BEP AC panel flanged 239x380 BC-FM2 113236
    $149.00 Inc GST
