Battery Management Clusters

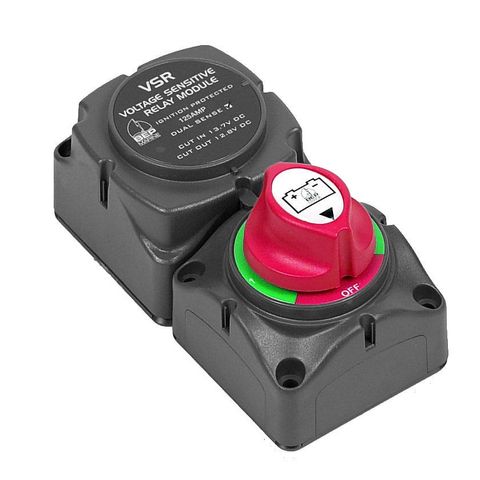

  • BEP 714-100A Battery Selector Switch Cluster with VSR
    The BEP 714-100A uses dual sensing VSR and the 701-S selector switch. Ensures there is always a fully charged reserve battery. For panel mount option see 203000. 69mmW x 135mmH x 75mmD
    Part No. Description Price Quantity
    202000
    Battery switch cluster 1/1+2/2 w DS VSR+ 714-140A-DVSR 113654
    $196.00 Inc GST
  • BEP 715-H and 715-V Battery Selector Switch Clusters
    The BEP 715-H and 715-V are three switch horizontal and vertical clusters without VSR. One switch with yellow Emergency Parallel actuator. For panel mounting use 203106. 210mm x 69mm x 75mmD
    Part No. Description Price Quantity
    202005
    Battery switch cluster 2bank&EP horizntl 715-H 113552
    $132.00 Inc GST
    202006
    Battery switch cluster 2bank&EP vertical 715-V 113554
    $139.00 Inc GST
  • BEP 716-SQ-100A Battery Switch Cluster with VSR
    This cluster replaces a selector switch. Seperate start and house systems protect from voltage spikes. Automatic paralleling and separation. For panel mount option see 203010. 136mmW x 136mmH x 75mmD
    Part No. Description Price Quantity
    202010
    Battery switch cluster 2 bank+VSRsquare+ 716-SQ-140A-DVSR 113684
    $279.00 Inc GST
  • BEP 716-H and 716-V Battery Switch Clusters with VSR
    The BEP 716 battery switch clusters are also available as in-line modules, either as 716-H-100A-VSR horizontal or 716-V-100A-VSR vertical. For panel mount option see 203015. 276mm x 69mm x 75mmD
    Part No. Description Price Quantity
    202015
    Battery switch cluster 2 bank+VSR horiz+ 716-H-140A-DVSR 114070
    $273.00 Inc GST
    202016
    Battery switch cluster 2 bank+VSR vert+ 716-V-140A-DVSR 114074
    $275.00 Inc GST
  • BEP 715-S Battery Selector Switch Cluster
    715-S is for boats with 2 engines and 2 battery banks. House loads are switched to either or both batteries. Can also be used to parallel batteries. No VSR. For panel mounting use 203106. 138mmx69mmx75mmD
    Part No. Description Price Quantity
    202020
    Battery switch cluster 2bank+houseselect 715-S 113666
    $153.00 Inc GST
  • BEP 718-140A-DVSR Battery Switch Cluster with DVSR
    The 718-100A is designed for 2 engine systems when it is not possible to have the alternators connected in parallel. The house battery is charged from the port engine via the VSR. 205mmWx136mmHx75mmD
    Part No. Description Price Quantity
    202030
    Battery switch cluster 3 bank+1 VSR 718-140A-DVSR 114078
    $333.00 Inc GST
  • BEP 717-140A-DVSR Battery Selector Switch Cluster with VSR
    BEP 717-140A-DVSR is designed for twin engine installations with two start batteries and a house bank. 2 VSRs enable the house bank to be charged by either or both alternators. 205mmWx136mmHx75mmD
    Part No. Description Price Quantity
    202035
    Battery switch cluster 3 bank+2 VSR 717-140A-DVSR 113688
    $465.00 Inc GST

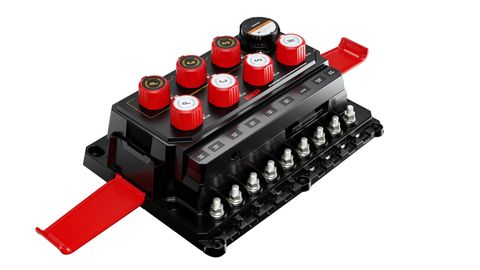

  • BEP Three Battery Banks Selector with VSR
    The VSR and Emergency parallel switch are combined into one voltage-sensitive switch, and that switch is able to be remote-operated. The layout allows all cables to be attached from the bottom of the cluster. Offers the same features as the 717-140A-DVSR Three battery banks.
    Part No. Description Price Quantity
    202037
    Battery switch cluster 2 bank+2MDVShoriz 80-716-0018-00 -
    $905.00 Inc GST
  • BEP 719-140A-DVSR Battery Selector Switch Cluster with VSR
    The 719-140A-DVSR is designed for triple engine installations. Using multiple DVSR's off each start battery, giving combined charge from all three engines into the house battery. 205mmx205mmx75mmD
    Part No. Description Price Quantity
    202040
    Battery switch cluster 4 bank+3 VSR 719-140A-DVSR -
    $906.00 Inc GST

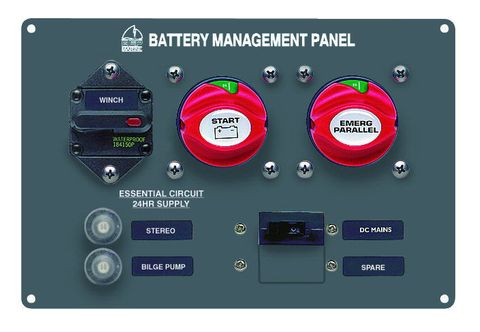

  • BEP Battery management panel 800-MS4
    The 800-MS4 is a management panel for smaller boats. 275A battery switches for Start & Parallelling. 100A main and 100A winch breakers.Two reset breakers for essential services plus room for another. 351mmWx260mmH.
    Part No. Description Price Quantity
    202100
    Panel Battery Management BEP 800-MS4+ 800-MS4 113669
    $969.00 Inc GST
  • BEP Battery management panel 800-MS1
    The 800-MS1 battery management panel is designed for power or sail boats between 10 - 12 meters with single engines. 275A battery switches for Start, House, Emergency Parallelling and an additionl switch for a possible third battery bank. Mounting positions for two more battery switches or small VSR's. 100A circuit main switch circuit breaker and 135A winch breaker. Four Carlingswitch B breakers for essential services [3x15A, 1x5A] plus room for mounting another Carlingswitch C circuit breaker. Dimensions 351mm [w] x260mm [h] x 75mm [d]. White panel, optionally available in black by special order.
    Part No. Description Price Quantity
    202110
    Panel Battery Management BEP 800-MS1+ 800-MS1 113677
    $1,036.00 Inc GST

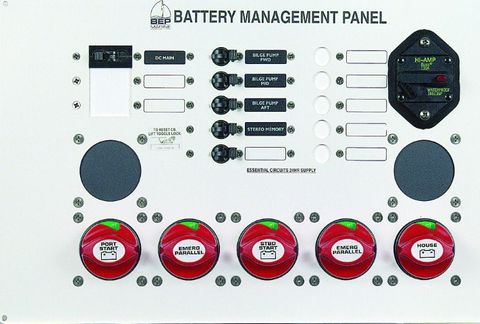

  • BEP Battery management panel 800-MS2
    The 800-MS2 battery management panel is designed for power boats between 10 - 12 meters with twin engines. 275A battery switches for two Start, House and two Emergency Parallelling and an additionl switch for a possible third battery bank. Mounting positions for two more 275A battery switches or small VSR's. 100A circuit main switch circuit breaker and 135A winch breaker. Five Carlingswitch B breakers for essential services [4x15A, 1x5A] plus room for mounting another 2 Carlingswitch C circuit breakers. Dimensions 463mm [w] x 281mm [h] x 75mm [d]. White panel, optionally available in black by special order.
    Part No. Description Price Quantity
    202120
    Panel Battery Management BEP 800-MS2+ 800-MS2 113678
    $1,166.00 Inc GST

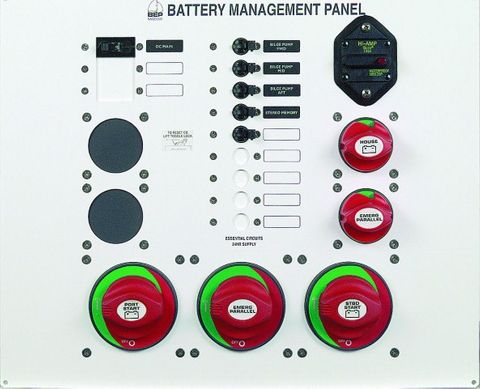

  • BEP Battery management panel 800-MS3
    The 800-MS3 battery management panel is designed for power boats between 12 - 16 meters with larger twin engines. 550A battery switches for two Start and Emergency Parallelling plus 275A battery switches House and Emergency Parallelling. Mounting positions for two more 275A battery switches or small VSR's. 100A circuit main switch circuit breaker and 150A winch breaker. Five Carlingswitch B breakers for essential services [4x15A, 1x5A] plus room for mounting another 2 Carlingswitch C circuit breakers. Dimensions 463mm [w] x 281mm [h] x 75mm [d]. White panel, optionally available in black by special order.
    Part No. Description Price Quantity
    202130
    Panel Battery Management BEP 800-MS3+ 800-MS3 113679
    $1,426.00 Inc GST
