Relays, Solenoids & Contactors

  • Part No. Description Price Quantity
    236000

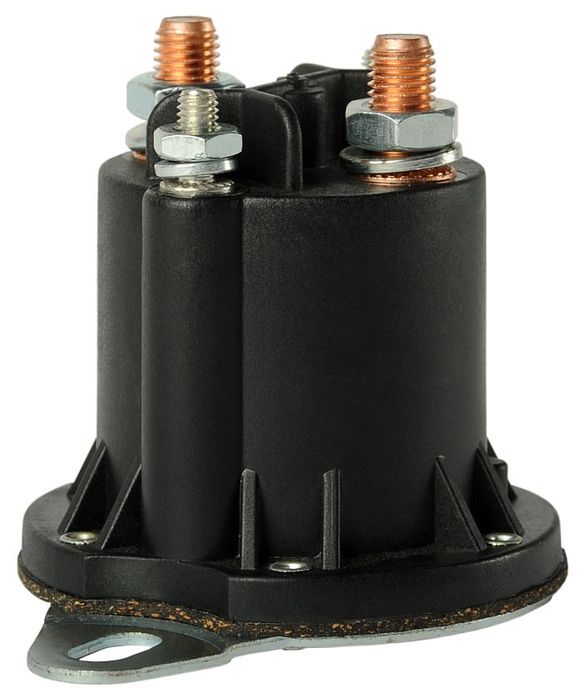

    Can solenoid/Contactor, 12VDC copper contacts 125 A (Continuous) Side Bracket TROMBETTA 974-1215-010
    		$150.00 Inc GST
    236001
    Can solenoid/Contactor, 24VDC copper contacts 125 A (Continuous) Side Bracket TROMBETTA 974-2415-010
    		$159.00 Inc GST
  • TROMBETTA High Performance Contactors
    The High Performance HP range of contactors from Trombetta feature durable, high temperature resistant plastic housings suitable for a variety of environmental conditions. Designed with efficiency, longevity and reliability in mind, the HP range is a cost effective solution for a myriad of applications. Rated 100 A nominal, 200 A intermittent, 300/400 A peak inrush current at 12/24V. Additional surface corrosion protection coating of the metal base is recommended for marine applications.

    Downloads

    Part No. Description Price Quantity
    236040
    Contactor 12VDC Copper contacts 200A Intermittent, Base Bracket TROMBETTA 784-1221-210
    		$36.00 Inc GST
    236042
    Contactor 12VDC SIlver contacts 100A Continuous, Base Bracket TROMBETTA 784-1221-020 784-1221-020
    		$65.00 Inc GST
    236044
    Contactor 12VDC SIlver contacts 100A Continuous Base Bracket 6.3mm push on terminals TROMBETTA 764-1221-020
    		$64.00 Inc GST
    236046
    Contactor 24VDC Silver contacts 100A Continuous, Base Bracket TROMBETTA 784-2421-020
    		$66.00 Inc GST
  • TROMBETTA PowerSeal Sealed Contactors
    The Trombetta PowerSeal range features an environmentally sealed housing to IEC 60529, IP66 and IP67 standard. It is the first contactor designed specifically for electric vehicles and other applications where environmental protection is a must. The sealed design is the core of the construction and is optimized for high performance at lower cost. Constructed from high impact plastic with zinc plated steel frame, the PowerSeal range is designed for high performance, durability and longevity. Rated 150 A nominal, 800 A peak inrush current at 12/24V. Additional surface corrosion protection coating of the metal base is recommended for marine applications.

    Downloads

    Part No. Description Price Quantity
    236050
    Contactor 12VDC 150A Copper (intermittent) base bracket TROMBETTA 684-1221-212
    		$70.00 Inc GST
    236051
    Contactor 12VDC 150A Copper (continuous) base bracket TROMBETTA 684-1221-012
    		$72.00 Inc GST
    236052
    Contactor 12VDC 300A Copper (intermittent) base bracket TROMBETTA 684-1221-232-02
    		$101.00 Inc GST
    236053
    Contactor 12VDC 200A Copper (continuous) base bracket TROMBETTA 684-1221-032-02
    		$101.00 Inc GST
    236054
    Contactor 24VDC 150A Copper (intermittent) base bracket TROMBETTA 684-2421-212
    		$79.00 Inc GST
    236055
    Contactor 24VDC 150A Silver(continuous) base bracket TROMBETTA 684-2421-012
    		$80.00 Inc GST
    236056
    Contactor 24VDC 300A Silver contacts (intermittent) base bracket TROMBETTA 684-2421-232-02
    		$104.00 Inc GST
    236057
    Contactor 24VDC 120A Silver contacts (continuous) base bracket TROMBETTA 684-2421-032-02
    		$101.00 Inc GST

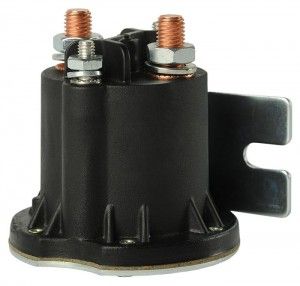

  • TROMBETTA PowerSeal Sealed Contactors - Side Bracket
    These contactors are the same as the ones with the Blat on Base brackets 236050 etc. , but have bracket for mounting to the side of the contactor. Additional surface protection should also be a[pplied to zinc plated steel brackets when used in marine applications.

    Downloads

    Part No. Description Price Quantity
    236060
    Contactor 12VDC 150A(intermittent) Copper contacts side bracket TROMBETTA 684-1251-212
    		$71.00 Inc GST
    236061
    Contactor 12VDC 150A (continuous) Copper contacts side bracket TROMBETTA 684-1251-012
    		$81.00 Inc GST
    236062
    Contactor 12VDC 300A(intermittent) Copper contacts side bracket TROMBETTA 684-1251-232-02
    		$105.00 Inc GST
    236063
    Contactor 12VDC 200A (continuous) Copper contacts side bracket TROMBETTA 684-1251-032-02
    		$104.00 Inc GST
    236064
    Contactor 24VDC 150A (intermittent) Copper side bracket TROMBETTA 684-2451-212
    		$81.00 Inc GST
    236065
    Contactor 24VDC 150A(continuous) Copper contacts side bracket TROMBETTA 684-2451-012
    		$83.00 Inc GST
    236066
    Contactor 24VDC 300A (intermittent) Copper side bracket TROMBETTA 684-2451-232-02
    		$105.00 Inc GST
    236067
    Contactor 24VDC 200A(continuous) Silver contacts side bracket TROMBETTA 684-2451-032-02
    		$104.00 Inc GST
  • Part No. Description Price Quantity
    236068
    Contactor, 12VDC 200A silver contacts (Continuous) 404-1231-032
    		$327.00 Inc GST
    236069
    Contactor, 24VDC 200A silver contacts (Continuous) 404-2431-032
    		$327.00 Inc GST
  • TROMBETTA Bear Contactors
    Designed for high current applications, the Trombetta Bear range of solenoid contactors represent excellent value. The combination of high impact plastic and zinc steel housing provides a robust device, compact in size and easy to install. Available with either 12 or 24VDC coils and copper or long life silver alloy the Bear is ideal for battery management, emergency starting, load switching and a myriad of demanding transport applications. Rated 225 A nominal, 600 A peak inrush current at 12/24V.

    Downloads

    Part No. Description Price Quantity
    236070
    Contactor, 12VDC 225A copper contacts (Continuous) TROMBETTA 114-1211-010
    		$220.00 Inc GST
    236072
    Contactor, 12VDC 225A silver contacts (Continuous) TROMBETTA 114-1211-020
    		$269.00 Inc GST
    236074
    Contactor, 24VDC 225A copper contacts (Continuous) TROMBETTA 114-2411-010
    		$222.00 Inc GST
    236076
    Contactor, 24VDC 225A silver contacts (Continuous) TROMBETTA 114-2411-020
    		$272.00 Inc GST
  • TROMBETTA Reversing Polarity DC Contactors
    Trombetta’s Reversing Polarity DC contactors provide a cost effective and simple solution for reversing direction of permanent magnet DC motors. By integrating two DC Contactors into a single unit, Trombetta has provided an efficient means for manufacturers and installers to reduce assembly costs. The RP is perfect for any application that requires reversing motion, such as winching, lifting, sliding and levelling systems in a multitude of transport applications. Rated 75 A for 5 minutes,150 A peak inrush current [copper], 500 A peak inrush current [silver] at 12/24V.

    Downloads

    Part No. Description Price Quantity
    236320
    Solenoid TRO pol reversing Copper 12V 75A 214-1231-A11
    		$168.00 Inc GST
    236322
    Solenoid TRO pol reversing Silver 12V 75A 214-1231-A61-06
    		$200.00 Inc GST
    236324
    Solenoid TRO pol reversing silver 24V 75A 214-2431-A61-06
    		$201.00 Inc GST
