Lamps LED Replacements

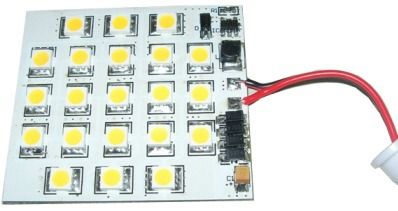

  • Bayonet base PCB LED replacement lamps
    Ideal replacements for incandescent bulbs in traditionsl dome lights. The pcb It is connected by a BA15D base on a flylead. Alternatively, the base can be cut of and the light hard wired instead. The PCB can be glued into the light fitting with adhesive such a silicone.
    Part No. Description Price Quantity
    590528
    Lamp LED B15D 21SMD flylead 9-30V wwe P21BD15TWW
    $20.00 Inc GST

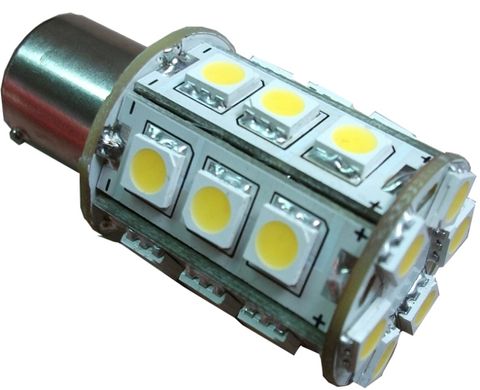

  • LED tower lamps with bayonet Cap Bases
    These towers have 24 cool or warm white Surface mount diodes. Bases available are single contact BA15S, double contact BA15D or Bay15D with offset pins. Major diameter 23mm, overall height 60mm.
    Part No. Description Price Quantity
    590532
    Lamp LED BA15S tower 8-30V cwe B15S18TCW
    $20.00 Inc GST
    590533
    Lamp LED BA15S tower 8-30V wwe B15S18TWW
    $20.00 Inc GST
    590536
    Lamp LED BAY15D24SMD 10-30V cwe NOT NAV BAY15D24TCW
    $20.00 Inc GST
  • Festoon LED replacement lamps
    LED 37mm or 42mm festoon replacement lamps with 6 or 9 cool or warm white surface mount diodes.
    Part No. Description Price Quantity
    590540
    Lamp LED Festoon 37mm 6SMD 8-30V cwe F3706TCW
    $10.00 Inc GST
    590541
    Lamp LED Festoon 37mm 6SMD 8-30V wwe F3706TWW
    $10.00 Inc GST
    590543
    Lamp LED Festoon 37mm 9SMD 8-30V cwe F379TCW
    $12.00 Inc GST
    590545
    Lamp LED Festoon 42mm 6SMD cwe F4206TCW
    $12.00 Inc GST
    590546
    Lamp LED Festoon 42mm 6SMD wwe F4206TWW
    $12.00 Inc GST
  • G4 LED replacement lamps - Back Pins
    These lamps are used instead of G4 halogen lamps, which have two wire pin contacts 4mm apart. As the light output from the PCB mounted SMD LED chips is very directional, it is essential to ensure that the PCB is correctly poitioned in the light fitting so that the LEDs shine outward. These products have pins mounted perpendiculary the the back face of the PCB. They are thus suited to downlights that have a lamp holder into which the pins fit vertically, they are also suited to bulkhead reading lights with a light shade where the lamp is inserted straight into a holder at the back of the light shade. The 8SMD PCBs are available with cool or warm white LEDs and have a diameter of 24 mm. The length of the wire contact pins is 25mm. These can be shortended by snipping them off with a side cutter, care should be takne not to break off the solder joint to the PCB when doing so, it's best to grip the pin being shortened with a pair of long nose pliers on the PCB side of the cutting point when doing so.
    Part No. Description Price Quantity
    590562
    Lamp LED G4 backpin 8SMD 10-30V d24 cwe G408TBCW USD2.70
    $10.00 Inc GST
    590563
    Lamp LED G4 backpin 8SMD d24 10-30V wwe G408TBWW USD2.70
    $10.00 Inc GST
  • Part No. Description Price Quantity
    590565
    Lamp LED G4 backpin 24SMD d26 10-30V cwe B-G428-24B
    $10.00 Inc GST

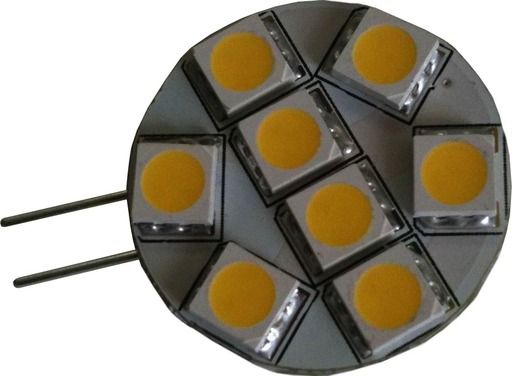

  • G4 LED replacement lamps - Side Pins
    These lamps are used instead of G4 halogen lamps, which have two wire pin contacts 4mm apart. As the light output from the PCB mounted SMD LED chips is very directional, it is essential to ensure that the PCB is correctly poitioned in the light fitting so that the LEDs shine outward. These products have pins mounted radially from the PCB, i.e. facing sideward. They are thus suited to downlights that have a lamp holder into which the pins fit sideways, i.e. horizintally. The 8SMD PCBs are available with cool or warm white LEDs and have a diameter of 24 mm. The length of the wire contact pins is 8mm.
    Part No. Description Price Quantity
    590572
    Lamp LED G4 sidepin 8SMD d24 8-30V cw LF-04H4CW
    $10.00 Inc GST
    590573
    Lamp LED G4 sidepin 8SMD d24 8-30V wwe LF-04H4WW
    $10.00 Inc GST
  • LED MR16 Dichroic Lamps
    These lamps are LED replacements for MR16 dichroic halogen lamps have 15 cool or warm white surface mount diodes.
    Part No. Description Price Quantity
    590585
    Lamp LED MR16 15SMD 10-30Vdc cwe M1615TCW
    $20.00 Inc GST
    590586
    Lamp LED MR16 15SMD 10-30Vdc wwe M1615TWW
    $20.00 Inc GST
  • LED Strip Lights
    60 bright 5050 LEDs/m encased in waterproof clear plastic with 3M self adhesive backing. Can be cut, every 3rd LED there is a set of contacts onto which leads can be soldered. Sold in 5m lengths. 12V, 1,2A/m. No more than two 5m lengths can be wired in series. If greater lengths are required, additional power feed in connections are required.
    Part No. Description Price Quantity
    590595
    Light LED strip WP 12V 5050 60/m 5m cwe FS60TPM60CW
    $75.00 Inc GST
    590596
    Light LED strip WP 12V 5050 60/m 5m wwe FS60TPM60CW
    $75.00 Inc GST
    590597
    Light LED strip WP 12V 5050 60/m 5m rd
    $75.00 Inc GST
    590598
    Light LED strip WP 12V 5050 60/m 5m be FS60TPM60CW
    $75.00 Inc GST
