BEP Contour Connect Panels
1 to 14 of 14 results
BEP Contour Connect CC-801 panelThe BEP Contour Connect Battery management System offers the ultimate versatility in panel design. Contour Connect can be arranged to cover all battery management needs. Contour Connect can be configured for vertical or horizontal mounting. All fastenings are hidden behind clip-on strips, which can be colour coordinated to requirement. The charcoal panels are supplied as standard with one charcoal and one light grey wave strip, but loose strips are available in charcoal, light grey, black and white. Clip -on covers at the rear of mouldings also ensure protection of exposed connections from accidental short circuits. Interlink joiners ensure a rigid structure when multiple panels are joined together. A full range of rigid and flexible links allow all neccessary interconnection of components fitted to the panels to be made. Apart from standard battery management modules that contain some of the BEP Battery Switch Clusters, a selection of loose moulding panels and hardware enable custom panels to be easily configured. The CC-801 incorporates a version of the very successful 714-100A cluster
Part No. Description Price Quantity203000Panel BEP CC801 1module selector sw &VSR CC-801 113010 $284.00 Inc GST

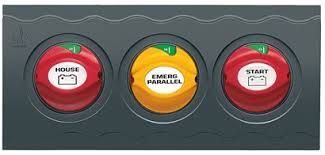

BEP Contour Connect CC-810 panelThe CC-810 is supplied standard with 3 x 701-PM battery switches pre-assembled. Ideal for installing alongside any other Contour Connect Modules.
Part No. Description Price Quantity203005Panel BEP CC810 1 module 3sw+ CC-810 113022 $285.00 Inc GST

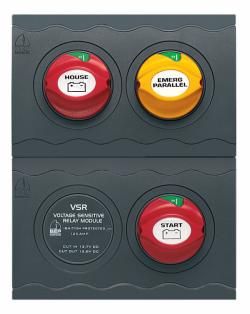

BEP Contour Connect CC–802 panelThe CC–802 incorporates a version of the most popular 716SQ dual engine battery switch cluster 202010 for installations with one starting batteries and a house bank. The CC–802 is supplied with cables links to allow different configurations. The components can easily be removed and reconfigured if the factory layout does not suit the application. Dimensions [horizontal orientation] 332mm x 106mm x 55mm intrusion, cutout dimensions 312mm x 86mm[h]. Dimensions [vertical orientation] 166mm x 212mm x 55mm intrusion, cutout dimensions 146mm x 192mm[h].
Part No. Description Price Quantity203010Panel BEP CC802 2 module 3sw &VSR CC-802 113014 $484.00 Inc GST

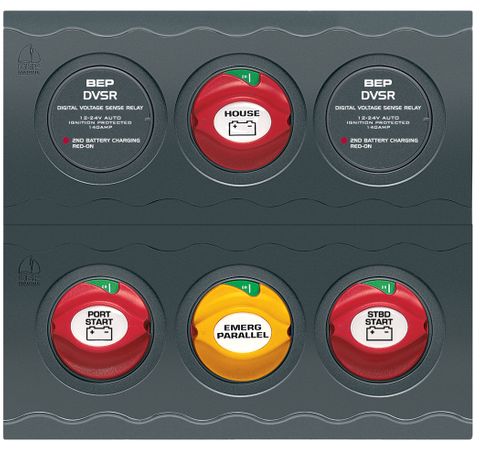

BEP Contour Connect CC–803 panelThe CC–803 incorporates a version of the 717 dual engine battery switch cluster 202035 for installations with two starting batteries and a house bank. The CC–803 is supplied with cables links to allow different configurations. The components can also be easily removed and reconfigured if the factory layout does not suit the application. Dimensions [horizontal orientation]; 446mm x 106mm x 55mm intrusion, cutout dimensions 426mm x 86mm[h]. Dimensions [vertical orientation]; 223mm x 212mm x 55mm intrusion, cutout dimensions 203mm x 192mm[h].
Part No. Description Price Quantity203030Panel dual engine plus house battery banks with 2 VSRs BEP CC-803N 113018 $905.00 Inc GST
BEP Contour Connect CC–804 panelThe CC–804 is equipped to cover essential circuits requirements [bilge, pumps etc] and is fitted with one 50A CB for DC mains or treatment systems. It is also fitted with a 135A 185 Series BUSMAN CB for anchor windlass. The CC–804 complements the other modules. Supplied with SET-CC-1 label sheet 203090 and back cover to enclose exposed terminals. Dimensions; 166mm x 106mm x 55mm intrusion, cutout dimensions 146mm x 86mm if mounted alone.
Part No. Description Price Quantity203050Panel BEP CC804 1module winch, main +3CB CC-804 113026 $403.00 Inc GST
BEP Contour Connect Label SET-CC-1Label SET-CC-1 is the label set that is supplied as standard with any panel containing magnetic-hydraulic toggle CB's or thermal push reset CB's. Contains 36 labels.
Part No. Description Price Quantity203090Label SET-CC-1 for BEP CC CB SET-CC-1 113696 $39.00 Inc GST
BEP Contour Connect Label SET-CC-2Label SET-CC-2 is the label set that is supplied as standard with any panel containing BUSMAN heavy duty thermal CB's. Contains 12 labels.
Part No. Description Price Quantity203095Label SET-CC-A for BEP CC Busman CB SET-CC-A 113697 $29.00 Inc GST
BEP Contour Connect panel plate CC-2The BEP Contour Connect CC-2 moulded panel can be used to fit any one of the BEP 700/701 Series battery switches or a Bussman heavy duty thermal CB. Also useful for panel mounting any small units by using 52mm hole blank-off plate 203136. In addition, any four magnetic-hydraulic toggle or push reset thermal CB's can be fitted. Dimensions
Part No. Description Price Quantity203100Panel plate BEP CC1 2x52mm cutouts+ CC-1 113050 $57.00 Inc GST203102Panel plate BEP CC-2 52 mm hole & 4CB CC-2 113052 $69.00 Inc GST
BEP Contour Connect panel plate CC-4The BEP Contour Connect CC-5 moulded panel has three 52mm hole cutouts and can be used to fit any combination of BEP 700/701 Series battery switches and/or Bussman heavy duty thermal CB's. Also useful for panel mounting any small units by using 52mm hole blank-off plate 203136. Dimensions
Part No. Description Price Quantity203106Panel plate BEP CC5 3x52mm cutouts CC-5 113056 $77.00 Inc GST
BEP Contour Connect holder for Busman breakersThe CC-HDBM module is used where a BUSMAN thermal heavy duty CB is mounted into a BEP Contour Connect 52mm panel.
Part No. Description Price Quantity203135Panel plate BEP CC-HDBM BUS 185P CB CC-HDBM 113064 $23.00 Inc GST
BEP Contour Connect blank off plugThe CC-BLANK plate is used off one of the 52mm round holes in BEP Contour Connect panels if this hole is not required at the time. It is also useful for panel mounting any other small components such as switches, panel lights, DC outlets etc.
Part No. Description Price Quantity203136Panel plate BEP CC-BLANK CC-BLANK 113068 $58.00 Inc GST
BEP Flexible Terminal Link
Part No. Description Price Quantity203170Terminal link flexible 6mm² 120mm lugs d6&d10 LD-6R-120-CE $10.00 Inc GST203171Terminal link flexible 6mm² 150mm lugs d6&d10 LD-6R-150-BD $11.00 Inc GST203172Terminal link flexible 6mm² 210mm lugs d6&d10 LD-6R-210-BD $12.00 Inc GST203173Terminal link flexible 6mm² 300mm lugs d6&d10 LD-6R-300-BD $14.00 Inc GST203174Terminal link flexible 25mm2 150mm d6&d10 709-150/BD $16.00 Inc GST203175Terminal link flexible 25mm²250mm d6&d10 709-250/BD $18.00 Inc GST203176Terminal link flexible 25mm2 300mm d6&d10 709-300/BD $20.00 Inc GST203177Terminal link flexible 25mm2 150mm 2xd10 709-150/DD $16.00 Inc GST203178Terminal link flexible 25mm2 250mm 2xd10 709-250/DD 113093 $18.00 Inc GST203179Terminal link flexible 25mm2 300mm 2xd10 709-300/DD $20.00 Inc GST

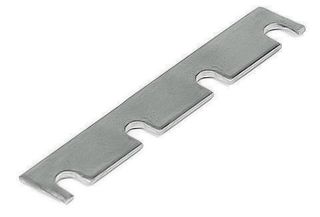

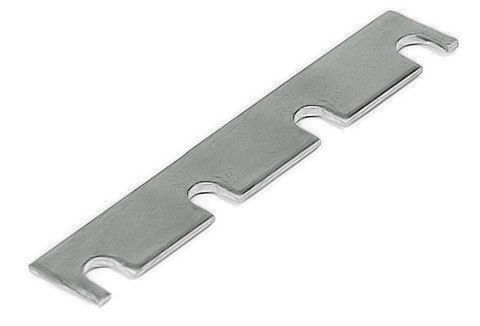

BEP Circuit Breaker Link
Part No. Description Price Quantity203180Bus for linking CB's in BEP CC panels NCB-CC 113656 $5.00 Inc GST
BEP Terminal link solid 70mm
Part No. Description Price Quantity203194Terminal link solid 70mm 708-70.0 113658 $13.00 Inc GST203196Terminal link solid BEP 107mm 708-107-V3 - $34.00 Inc GST
