Glands

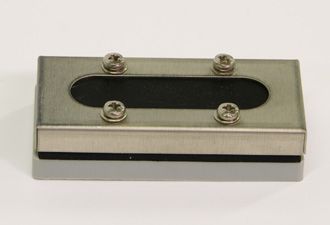

  • Rectangular INDEX MARINE Deck Gland
    INDEX MARINE DR1 rectangular deck glands allow several cables to be passed through it,achieving a perfect seal. Holes are drilled through the 12.5mm thick diaphragm as needed. 94mmLx44mmW. Aperture 65mmx18mm
    Part No. Description Price Quantity
    290010
    Deck gland DR1 92x43x25mm undrilled A1-DR1 A1-DR1
    $72.00 Inc GST
  • Small INDEX MARINE Deck Gland
    INDEX MARINE small deck gland for small cables. Suitable for a single cable or COAX cable. Perfect water-tight seal. Suits cable d2mm to d8mm. Overall diameter 32mm.
    Part No. Description Price Quantity
    290011
    Deck gland A1DG8P d35mm cable d2,5-6mm A1DG8P A1DG8P
    $20.00 Inc GST

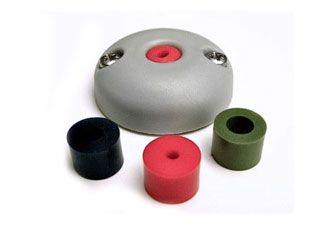

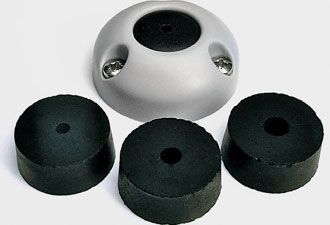

  • Large Pre-Drilled INDEX MARINE Deck Glands
    These have a tapered body & seal. The seal is slit to enable a cable to be passed through the deck with the end connector fitted. Small max9mm cables Med 9-14mm cables Large 12-15mm cables Max plugs d21m
    Part No. Description Price Quantity
    290012
    Deck gland DG21P od49 id21 cable d4,5-9 A1DG21P A1DG21P
    $40.00 Inc GST
    290013
    Deck gland DG22P od49 id21 cable d9-14 A1DG22P A1DG22P
    $40.00 Inc GST
    290014
    Deck gland DG45P od70 id35 cable d12-15 A1DG45P A1DG45P
    $45.00 Inc GST
  • Large Undrilled INDEX MARINE Deck Glands INDEX MARINE undrilled deck glands make multiple cable installation simple. The tapered seal can be drilled for as many cables as required & slit to allow passage of a cable with connector fitted.
    Part No. Description Price Quantity
    290015
    Deck gland DG20P d49mm undrilled A1DG20P A1DG20P
    $35.00 Inc GST
    290016
    Deck gland DG30P d60mm undrilled A1DG30P A1DG30P
    $40.00 Inc GST
    290017
    Deck gland DG40P d66mm undrilled A1DG40P A1DG40P
    $45.00 Inc GST

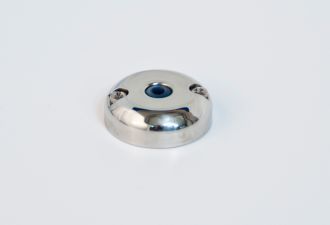

  • Small Stainless Steel INDEX MARINE Deck Gland
    INDEX MARINE small deck gland, similar to gland 290011 above, but with a polished 316 stainless steel cover.
    Part No. Description Price Quantity
    290021
    Deck gland ss A1DG8S d35mm cable d2,5-6+ A1DG8S A1DG8S
    $44.00 Inc GST

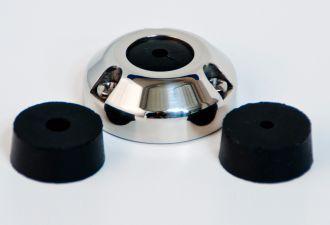

  • Large Stainless Steel Pre-Drilled INDEX MARINE Deck Glands INDEX MARINE large pre drilled deck glands, similar to glands 290012 to 290014 above, but with polished 316 stainless steel covers.
    Part No. Description Price Quantity
    290022
    Deck gland ssDG21S od49id21 cabled4,5-9+ A1DG21S A1DG21S
    $59.00 Inc GST
    290023
    Deck gland ssDG22S od49 id21cable d9-14+ A1DG22S A1DG22S
    $59.00 Inc GST
    290024
    Deckgland ssDG45S od70id35 cable d12-15+ A1DG45S A1DG45S
    $59.00 Inc GST
  • Large Undrilled INDEX MARINE Deck Glands
    Large Stainless Steel undrilled INDEX MARINE Deck glands similar to glands 290015 to 290017 above, but with polished 316 stainless steel covers.
    Part No. Description Price Quantity
    290025
    Deck gland ss DG20S d49mm undrilled+ A1DG20S A1DG20S
    $56.00 Inc GST
    290026
    Deck gland ss DG30S d60mm undrilled+ A1DG30S A1DG30S
    $54.00 Inc GST

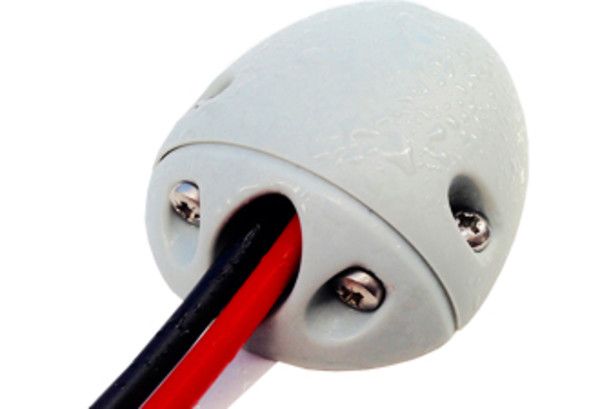

  • INDEX MARINE Side Entry Deck Glands
    INDEX MARINE side entry deck glands provide the solution where a flush cable entry is required. Rated IP68. Made from UV stable glass reinforced Nylon. Available in three sizes with an aperture range of 2-12mm.
    Part No. Description Price Quantity
    290032
    Deck gland SEA1SE1 55x42x15 cable d2-7 A1SE1 A1SE1
    $20.00 Inc GST
    290033
    Deck gland SEA1SE5 82x62x24 cable d7-9 A1SE5 A1SE5
    $30.00 Inc GST
    290034
    Deck gland SE A1SE6 82x62x24cable d10-12 A1SE6 A1SE6
    $30.00 Inc GST
  • INDEX MARINE SE7 Two cable Side Entry Gland
    The index marine SE7 Side Entry gland allows for the watertight entry of two wires of diameters d3mm tio d6mm. 82 x 62 x 24mm.
    Part No. Description Price Quantity
    290035
    Deck gland SE A1E7 82x62x24 wire 2xd3-6 A1E7 A1E7
    $30.00 Inc GST
    290036
    Deck gland side entry SE A1E7 82x62x24 wire 2 x d3-6 black SE7B SE7B
    $30.00 Inc GST
