Lamps (Globes)

  • Festoon Lamps
    Festoon incandescent lamps have a pointed contact at either end. They are available in various lengths from 28mm to 41mm.
    Part No. Description Price Quantity
    590001
    Lamp Festoon 07.5 X 28mm 12V 3W 1108282
    $2.50 Inc GST
    590003
    Lamp Festoon 10 X 30mm 12V 10W
    $3.50 Inc GST
    590004
    Lamp festoon 10.5 X 36mm 12V10W ASI: 159-12/820 Hel: L1210/10
    $2.50 Inc GST
    590009
    Lamp Festoon 10.5 X 41mm 12V 10W K1210/10
    $3.00 Inc GST
    590010
    Lamp Festoon 10.5 X 41mm 24V 10W ASI 161-24/240 Hel K2410/10
    $3.50 Inc GST
  • BA7S Bayonet Lamps
    BA7S Bayonet lamps have a 7 mm diameter base. They do not have the retaining pins that bayonet lamps usually have, but instead have retaining lugs pinched into the sheet metal base. They have a single contact on the base, i.e. the other contact is made through the base housing.
    Part No. Description Price Quantity
    590030
    LAMP BA07S 6,8x20 12V2W J122
    $3.00 Inc GST
    590031
    Lamp BA07S 6.8x20 24V 3W 25024 ASI: 17-24/125 HEL:J243/10
    $3.50 Inc GST
  • BA9S Bayonet Lamps
    BA9S Bayonet lamps have a 9 mm diameter base. They have a single contact on the base, i.e. the other contact is made through the base housing.
    Part No. Description Price Quantity
    590032
    LAMP BA09S 09x23 12V2W H122 20-12/165
    $2.50 Inc GST
    590033
    LAMP BA09S 09x23 24V2W H242
    $2.00 Inc GST
    590042
    LAMP BA09S 09x23 12V4W HL124
    $2.00 Inc GST
  • BA15D Bayonet Lamps
    BA15D Bayonet lamps have a 15 mm diameter base. They have two contacts on the base, i.e. no contact is made through the base housing.
    Part No. Description Price Quantity
    590085
    Lamp bayonet BA15D G18 18x36 12V10W 175-12/10
    $4.50 Inc GST
    590086
    Lamp bayonet BA15D G25 25x48 12V21W ASI: 179-12/18 HEL: FD1221/10
    $4.50 Inc GST
    590088
    Lamp bayonet BA15D G25 25x48 24V21W 25578 ASI: 179-24/21 HEL: FD2421/10
    $4.50 Inc GST
    590087
    Lamp bayonet BA15D G18 18x36 24V10W 175-24/10
    $4.50 Inc GST
  • BAY15D Bayonet Navigation Light Lamps
    These are special lamps that are taller than the automotive style lamps, with a filament that spirals up into the bulb. BAY15D Bayonet lamps have a 15 mm diameter base. Unlike most other bayonet lamps, their retaining pins are not coaxial [in-line], i.e. the one pin is higher than the other one when the lamp is viewed side on, also referred to as offset pins. They have two contacts on the base, i.e. no contact is made through the base housing. The bulb diameter is 25.5mm and the overall height is 70mm.
    Part No. Description Price Quantity
    590111
    Lamp nav BAY15D 25x70 12V10 W EA1210
    $16.00 Inc GST
    590112
    Lamp nav BAY15D 25x70 12V25 W EA1225
    $16.00 Inc GST
    590113
    Lamp nav BAY15D 25x70 24V10 W EA2410
    $15.00 Inc GST
    590114
    Lamp nav BAY15D 25x70 24V25 W EA2425
    $19.00 Inc GST
  • Wedge Lamps
    Wedge lamps are made from glass without a metal base. The glass base is formed flat. The filament contacts are folded over the glass base. They are available in two sizes, T5 and T10, which have 5mm and 10mm diameters respectively.
    Part No. Description Price Quantity
    590160
    Lamp wedge T5 5x20 12V2W 10-12/165
    $1.50 Inc GST
    590161
    Lamp wedge T5 5 X 20 24V1.2W 10-24/085
    $1.50 Inc GST
    590162
    Lamp wedge T10 10x26 12V2W 10-12/165
    $2.00 Inc GST
    590163
    Lamp wedge T10 10x26 24V2W 10-24/085
    $2.00 Inc GST
  • Part No. Description Price Quantity
    590216
    Lamp Halogen bi pin G4 28V10W 28032A 59-28/350
    $6.00 Inc GST
    590218
    Lamp Halogen bi pin G4 28V20W 28032A 59-28/350
    $6.00 Inc GST

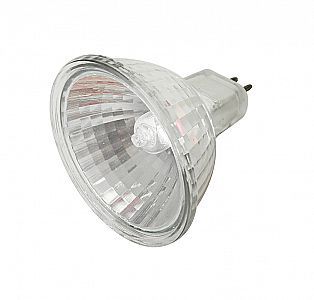

  • MR16 Dichroic Halogen Lamps
    MR16 Dichroic halogen lamps have a cone shaped reflector integrated in the glass housing. The diameter of the glass cone is 50 mm at its widest point.and the contact pins are 5.3mm apart.
    Part No. Description Price Quantity
    590241
    Lamp MR16 dichroic 24V 10W 063-024/10W
    $12.00 Inc GST
    590242
    Lamp MR16 dichroic 12V 20W 35551 63-12/20W
    $9.00 Inc GST
    590243
    Lamp MR16 dichroic 12V 10W
    $9.00 Inc GST

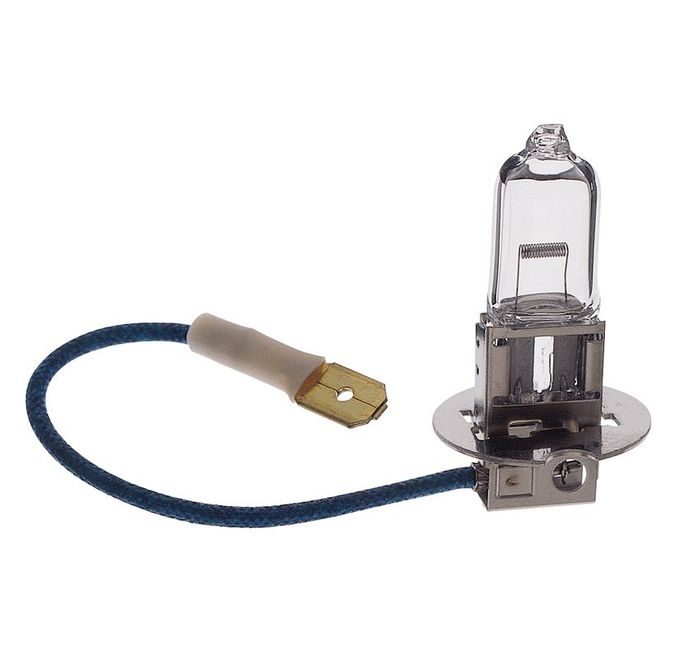

  • H3 Quartz Lamps
    H3 quartz lamps have a grounded metal base and a tail with a 6.3 mm male tab connector. They were extensively used in halogen flood and spot lights.
    Part No. Description Price Quantity
    590270
    Lamp Quartz H3 with tail 12V 55W 8GH 002 090-131 YC1255
    $7.00 Inc GST
    590271
    Lamp Quartz H3 with tail 12V 100W 8GH 002 090-051 YC12100
    $14.00 Inc GST
    590272
    Lamp Quartz H3 with tail 24V 70W 8GH 002 090-254 YC2470
    $13.00 Inc GST
    590273
    Lamp Quartz H3 with tail 24V 100W 8GH 002 090-452 YC24100
    $20.00 Inc GST
  • 8W Fluorescent Tubes
    These formerly very commonly used T5 8W fluorescent tubes are 300mm long. They are not voltage specific, the inverter built into the light fitting must be selected to be suited to the supply voltage.
    Part No. Description Price Quantity
    590301
    Lamp fluoro 8W 16 x 300 mm FL8 FL8
    $5.00 Inc GST
  • 114mm Round Sealed Beams
    These 114mm diameter round sealed beams are widely used in deck, spreader and spot lights. The flood lamps have diffuser lenses, the spot lamps have clear lenses.
    Part No. Description Price Quantity
    590400
    Lamp Sealed Beam flood PAR36 d114mm 12V35W GE4411 90400307
    $175.00 Inc GST
    590401
    Sealed beam flood PAR36 d114mm 28V 50W scrterm GE 23509 4589-1 NARVA1036 N74036 VER 9040030800
    $175.00 Inc GST
  • HOBBS Rectangular Sealed Beam Lamps
    Replacement rectangular sealed beams for Hobbs lights.
    Part No. Description Price Quantity
    590410
    Sealed beam HOBBS 75x125mm flood 12V50W 7404100
    $50.60 Inc GST
    590411
    Sealed beam HOBBS 100x150mm flood 12V50W 7210815
    $68.20 Inc GST
    590412
    Sealed beam HOBBS 100x150mm flood 24V60W 7272815
    $68.20 Inc GST
