Fuses and Fuseholders
1 to 10 of 10 results
-
BEP Blade Fuseholder6 fuse BEP ATO/ATC-6W blade fuseholder on positive bus. Clear insulating cover with label set. Imax total 100A, Imax/circuit 30A. 6mm stud connection to bus, 4mm screw connections to circuits. 90mmWx 80mmHx47mmD
Part No. Description Price Quantity 220470Fuseholder BEP blade 06 pole ATC-6W 113632$47.00 Inc GST Related Products
-
-
MAXI blade Fuseholder InlineBEP MAXI-Blade Fuseholder in-line waterproof, sealed, requires butt-spliced cable connection, Wire size 8mm². Suitable for up to 40A.
Part No. Description Price Quantity 220550Fuseholder for maxi-blade fuses in-line 8mm² cable BEP HDBFH 113621$15.00 Inc GST -
BEP 702MFH MAXI blade FuseholderThe BEP 702MFH MAXI fuse holder with clear cover is an economical way of fusing heavy loads 30-80A. Fuse is clamped between tinned brass clamps for positive connection. 6mm studs. 71 x 53 x 36 mm
Part No. Description Price Quantity 220560Fuseholder BEP for 1 Maxi blade fuse 702-MFH 113623$37.00 Inc GST -
ANL or Lift-truck FusesANL or lift-truck fuses protect high current circuits. Made in Germany . Window allows fuse checking. Swing out bolt connections allow fuse changing without removing fasteners or cable. Dim 82x19x11mm for studs d10mm @ 60mm pitch.
Part No. Description Price Quantity 220818Fuse ANL 080A FBT080$24.00 Inc GST 220820Fuse ANL 100A FBT100$24.00 Inc GST 220821Fuse ANL 125A FBT125$24.00 Inc GST 220822Fuse ANL 150A BS5127$25.00 Inc GST 220824Fuse ANL 200A FBT200$24.00 Inc GST 220826Fuse ANL 250A FBT250$24.00 Inc GST 220828Fuse ANL 300A FBT300$24.00 Inc GST 220830Fuse ANL 355A FBT355$24.00 Inc GST 220833Fuse ANL 425A IP425$25.00 Inc GST 220835Fuse ANL 500A FBT500$25.00 Inc GST -
BEP ANL Lift-truck FuseholderANL
Part No. Description Price Quantity 220860Fuseholder BEP for ANL (liftruck) fuses 704-ANL 113569$97.00 Inc GST -
BEP PRO INSTALLER ANL Fuse HolderVersatile ANL fuseholder with a clear polycarbonate cover for fuses rated up to 300A. Designed for use with other modules in the BEP PRO INSTALLER range.
Downloads
Part No. Description Price Quantity 220862Fuseholder BEP PI for ANL fuses to 300A 778-ANL 114640P$46.00 Inc GST -
BEP PRO INSTALLER ANL Fuse HolderVersatile ANL fuseholder with a clear polycarbonate cover for fuses rated up to 750A. Separate studs for fuse and wire terminals. Designed for use with other modules in the BEP PRO INSTALLER range.
Downloads
Part No. Description Price Quantity 220864Fuseholder BEP PI for ANL fuses to 750A 778-ANL2S 114644P$93.00 Inc GST -
BEP PRO INSTALLER Through Panel ANL Fuse HolderInnovative ANL through panel or bulkhead fuseholder with a clear polycarbonate cover for fuses rated up to 500A. Designed for use with other modules in the BEP PRO INSTALLER range.
Downloads
Part No. Description Price Quantity 220866Fuseholder BEP PI through panel ANL 500A 778-ANLTP 114642P$110.00 Inc GST -
T-Class FusesT-Class fuses are fast acting Semiconductor DC fuses that come in sizes up to 600 Amps and apart from a high voltage rating have a very high current interrupt rating. The current interrupt rating is higher than that of ANL or MRBF fuses, making T-Class fuses essential for circuits capable of maintaining high arcing currents accross fuses once they have blown, as found in lithium battery, other large battery and inverter installations. Unlike ANL fuses, Class-T fuses have not been certified to be ignition protected and do not have any visible indicator of status. There are four different physical sizes of T-Class fuses based on their current rating value. Each type requires a fuse block with different dimensions.
Downloads
Part No. Description Price Quantity 220920Fuse T Class (JJN) 110A 5112B-BSS -$78.00 Inc GST 220921Fuse T Class (JJN) 125A 5113B-BSS -$78.00 Inc GST 220922Fuse T Class (JJN) 150A 5114B-BSS -$78.00 Inc GST 220923Fuse T Class (JJN) 175A BLUE SEA 5115B-BSS -$78.00 Inc GST 220924Fuse T Class (JJN) 200A 5116B-BSS BS-5116$68.00 Inc GST 220925Fuse T Class (JJN) 225A 5117B-BSS BS-5117$103.00 Inc GST 220926Fuse T Class (JJN) 250A 5118B-BSS BS-5118$74.00 Inc GST 220928Fuse T Class (JJN) 300A 5119B-BSS BS-5119$83.00 Inc GST 220930Fuse T Class (JJN) 300A 5120B-BSS BS-5120$117.00 Inc GST 220932Fuse T Class (JJN) 400A 5121B-BSS BS-5121$74.00 Inc GST 220934Fuse T Class (JJN) 450A FT-450-B 114680$164.00 Inc GST 220936Fuse T Class (JJN) 500A FT-500-B 114683$165.00 Inc GST 220940Fuse T Class (JJN) 600A FT-600-B 114684$165.00 Inc GST -

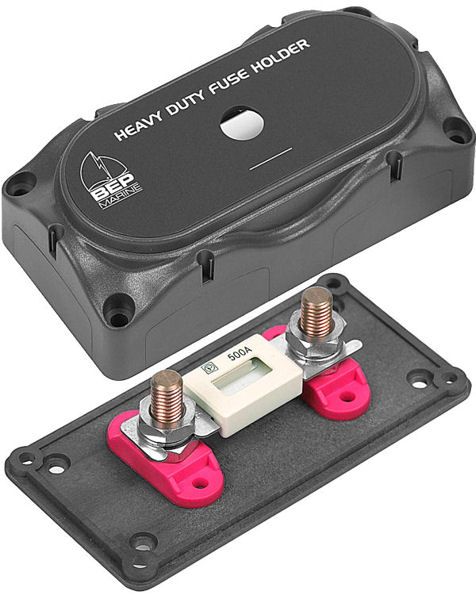

BEP PRO INSTALLER T-Class Fuse HoldersVersatile T-Class fuseholders with clear polycarbonate covers for fuses rated 225-600A. Designed for use with other modules in the BEP PRO INSTALLER range.
Downloads
Part No. Description Price Quantity 220962Fuseholder T Class Pro-Installer 225-400A with cover M10 studs BEP 778-T2S-400-B 114650P$93.00 Inc GST 220964Fuseholder T Class Pro-Installer 450-600A with cover M10 studs BEP 778-T2S-600-B 114652P$109.00 Inc GST
1 to 10 of 10 results
