Lamps (Globes)

  • BA9S Bayonet Lamps
    BA9S Bayonet lamps have a 9 mm diameter base. They have a single contact on the base, i.e. the other contact is made through the base housing.
    Part No. Description Price Quantity
    590032
    LAMP BA09S 09x23 12V2W H122 20-12/165
    $2.50 Inc GST
    590033
    LAMP BA09S 09x23 24V2W H242
    $2.00 Inc GST
    590042
    LAMP BA09S 09x23 12V4W HL124
    $2.00 Inc GST

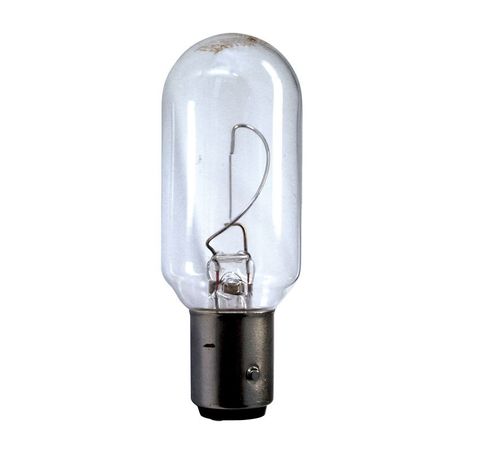

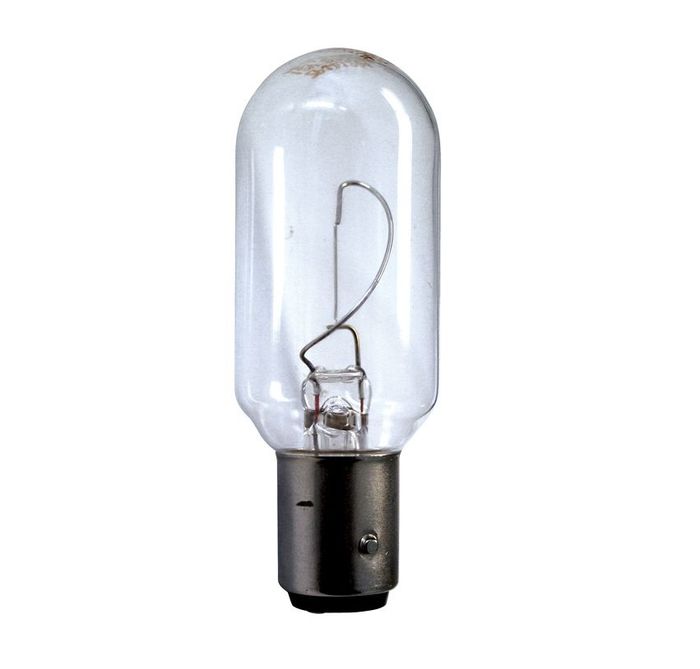

  • BAY15D Bayonet Navigation Light Lamps
    These are special lamps that are taller than the automotive style lamps, with a filament that spirals up into the bulb. BAY15D Bayonet lamps have a 15 mm diameter base. Unlike most other bayonet lamps, their retaining pins are not coaxial [in-line], i.e. the one pin is higher than the other one when the lamp is viewed side on, also referred to as offset pins. They have two contacts on the base, i.e. no contact is made through the base housing. The bulb diameter is 25.5mm and the overall height is 70mm.
    Part No. Description Price Quantity
    590111
    Lamp nav BAY15D 25x70 12V10 W EA1210
    $16.00 Inc GST
    590112
    Lamp nav BAY15D 25x70 12V25 W EA1225
    $16.00 Inc GST
    590113
    Lamp nav BAY15D 25x70 24V10 W EA2410
    $15.00 Inc GST
    590114
    Lamp nav BAY15D 25x70 24V25 W EA2425
    $19.00 Inc GST

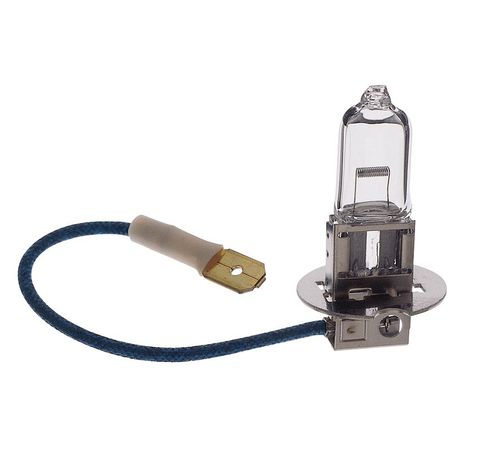

  • H3 Quartz Lamps
    H3 quartz lamps have a grounded metal base and a tail with a 6.3 mm male tab connector. They were extensively used in halogen flood and spot lights.
    Part No. Description Price Quantity
    590270
    Lamp Quartz H3 with tail 12V 55W 8GH 002 090-131 YC1255
    $7.00 Inc GST
    590271
    Lamp Quartz H3 with tail 12V 100W 8GH 002 090-051 YC12100
    $14.00 Inc GST
    590272
    Lamp Quartz H3 with tail 24V 70W 8GH 002 090-254 YC2470
    $13.00 Inc GST
    590273
    Lamp Quartz H3 with tail 24V 100W 8GH 002 090-452 YC24100
    $20.00 Inc GST
  • 8W Fluorescent Tubes
    These formerly very commonly used T5 8W fluorescent tubes are 300mm long. They are not voltage specific, the inverter built into the light fitting must be selected to be suited to the supply voltage.
    Part No. Description Price Quantity
    590301
    Lamp fluoro 8W 16 x 300 mm FL8 FL8
    $5.00 Inc GST
